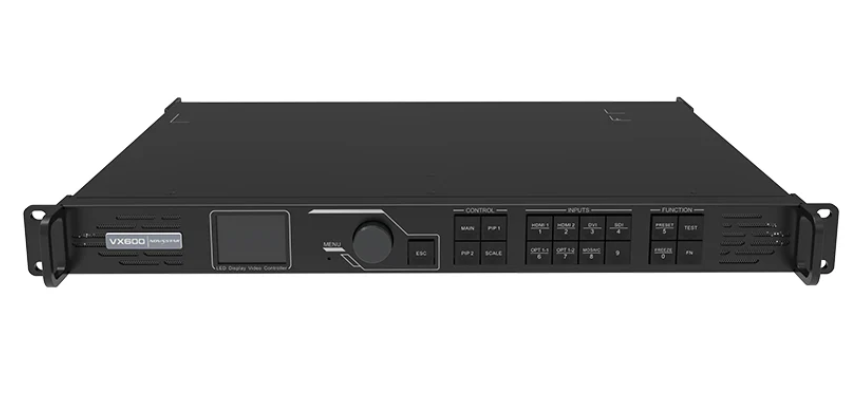

VX6033
The VX600 is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It features 6 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX600 unit can drive up to 3.9 million pixels, with the maximum output width and height up to 10,240 pixel and 8192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens.
Description
Specifications
Loading Capacity
- 3.9 million pixels
Max Width Height
- Width 10,240 pixels x Height 8,192 pixels
Layers
- 3 Layers
Inputs
- 1x 3G SDI (IN LOOP)
- 1x HDMI1.3 (IN LOOP)
- 1x HDMI1.3
- 1x DVI (IN LOOP)
- 1x OPT
Outputs
- 6x RJ45
- 2x 10G OPT
- 1x HDMI1.3 (For Monitor or Preview)
GENLOCK (IN LOOP):Yes
Low Latency:Yes
Input Source Backup:Yes
Bypass Mode:Yes
Fiber Converter Mode:Yes
Electrical Parameters
- Power connector 100–240V~, 1.5A, 50/60Hz
- Rated power consumption 28 W
Operating Environment
- Temperature –10°C to +60°C
- Humidity 20% RH to 90% RH, non-condensing
Storage Environment
- Temperature –20°C to +70°C
- Humidity 10% RH to 95% RH, non-condensing
Physical Specifications
- Dimensions 483.6 mm × 351.2 mm × 50.1 mm
- Net weight 4 kg
- Gross weight 6.3 kg
Packing Information
Accessories
- 1x Power cord
- 1x HDMI to DVI cable
- 1x USB cable1x Ethernet cable
- 1x HDMI cable
- 1x Quick Start Guide
- 1x Certificate of Approval
- 1x Customer Letter
- 1x Safety Manual
- Packing box 565 mm × 175 mm × 450 mm
Certifications
- TBD
Noise Level (typical at 25°C/77°F)
- 45 dB (A)
