B1.667

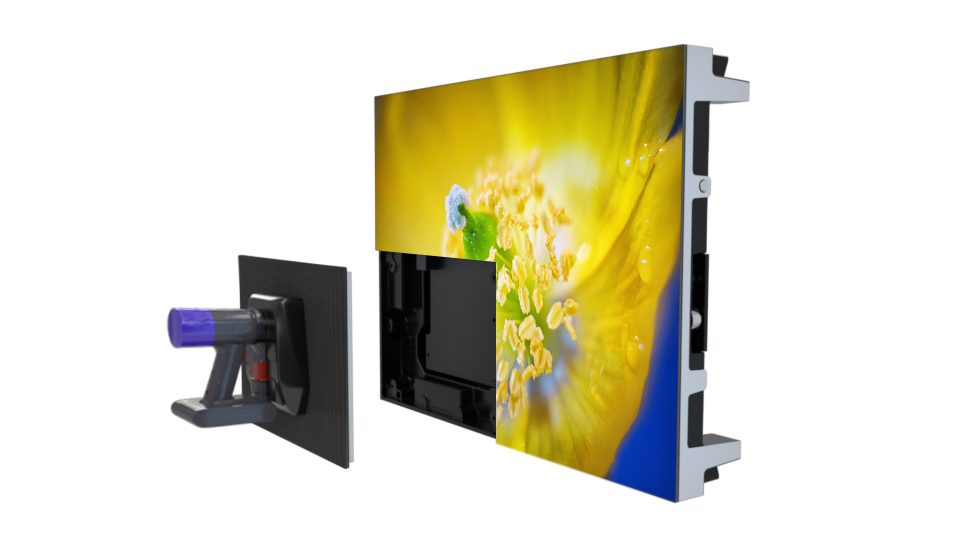

Ecran LED indoor pitch 1.5625 mm SMD1010 black
Description
| Model | B1.5625 | B1.667 | |||
| LED Encapsulation | SMD1010 black | ||||
| Pixel Pitch | 1.5625 | 1.667 | |||
| Resolution | 409,600 pixels/m² | 359856 pixels/m² | |||
| LED Lamp/IC | Nationstar copper wire / high refresh rate
Nationstar Gold Wire/high refresh rate |
||||
| Panel Resolution (Pixels) | 256*192 | ||||
| Panel Dimension(mm) | 400*300 | ||||
| Panel Weight | 5Kg/per panel | ||||
| Operating Voltage | DC+4.2V | ||||
| Maintenance Method | Front Maintenance | ||||
| Brightness | 200-800CD/m² | ||||
| Contrast | ≥10000: 1 | ||||
| MTBF | ≥10000H | ||||
| Protection Level | IP5X | ||||
| Working Voltage (AC) | 220V±10%/50Hz or 110V±10%/60Hz | ||||
| Average Power Consumption | 233W/m² | ||||
| Maximum Power Consumption | 700W/m² | ||||
| Temperature | Storage:-35℃~+85℃ Operating: -10℃~+40℃ | ||||
