VCNA800-PB

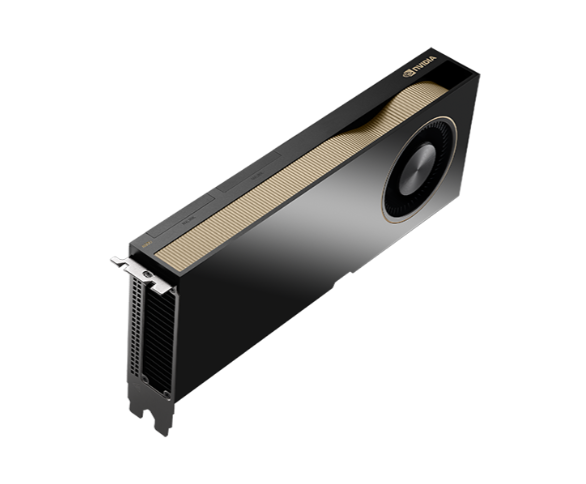

NVIDIA A800 40GB Active
Description
PNY Part Number |
VCNA800-PB |
|---|---|
Product |
NVIDIA A800 40GB Active |
Architecture |
NVIDIA Ampere |
Foundry |
TSMC |
Process Size |
7 nm NVIDIA Custom Process |
Die Size |
826 mm |
CUDA® Cores |
6912 |
Streaming Multiprocessors |
108 |
Tensor Cores | Gen 3 |
432 |
FP64 Performance |
9.7 TFLOPS |
FP32 Performance |
19.5 TFLOPS |
TF32 Tensor Core |
311.8 TFLOPS* |
BFLOAT16 Tensor Core |
312 TFLOPS | 624 TFLOPS* |
FP16 Tensor Core |
312 TFLOPS | 624 TFLOPS* |
INT8 Tensor Core |
1247.4 TOPS* |
INT4 Tensor Core |
1248 TOPS | 2496 TFLOPS* |
NVLink |
2-way low profile (2-slot and 3-slot bridges), 400 GB/s bidirectional |
NVLink Bandwidth |
400 GB/s |
GPU Memory |
40GB HBM2 |
Memory Interface |
5120-bit |
Memory Bandwidth |
1555.2 GB/s |
Multi-Instance GPU Support |
Up to 7 MIG Instances |
System Interface |
PCIe 4.0 x16 |
Display Support |
None Provided, use companion NVIDIA T1000 or RTX A4000 board for video output |
Thermal Solution |
Active |
Form Factor |
4.4" H x 10.5" L, Dual-Slot |
Power Connector |
CEM5 16-pin |
Maximum Power Consumption |
240W |
|
|
