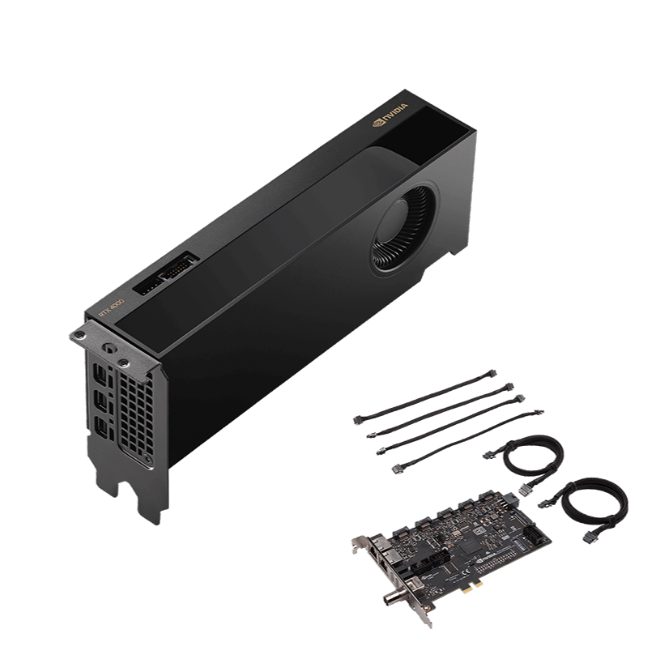

VCNRTX4000ADALPSY-PB
NVIDIA RTX 4000 SFF Ada Generation + HW Sync
Description
SPECIFICATIONS
| Architecture | NVIDIA Ada Lovelace Architecture |
| Process Size | 4nm NVIDIA Custom Process | TSMC |
| Transistors | 28.3 Billion |
| Die Size | 294.5 mm2 |
| Transistors | 35.8 Billion |
| CUDA Cores | 6144 |
| Tensor Cores | 192 | Gen 4 |
| RT Cores | 48 | Gen 3 |
| Single Precision Performance | 38.7 TFLOPS |
| RT Core Performance | 75.6 TFLOPS |
| FP32 Performance1 | 19.2 TFLOPS |
| Tensor Performance1 | 306.8 TFLOPS2 |
| RT Core Performance1 | 44.3 TFLOPS |
| GPU Memory | 20 GB GDDR6 ECC |
| Memory Interface | 160-bit |
| Memory Bandwidth | 320 GB/s |
| Display Connectors | mDP 1.4a (4)3 |
| Graphics Bus | PCI Express 4.0 x16 |
| Form Factor | 2.7” H x 6.6”L | Low Profile Dual Slot |
| Thermal Solution | Active Fansink |
| AR/MR/VR/XR Capable | Yes |
| NVIDIA 3D Vision and 3D Vision Pro | Support via Optional 3-pin mini-DIN |
| Frame Lock | Compatible with NVIDIA Quadro Sync II |
| NVLink | Not Supported |
| Maximum Power Consumption | 70W | No Auxiliary Power Required |
| NVIDIA Quadro Sync II Connectors | RJ45 Frame Lock (2) + BNC Genlock |
| Sync II Status Bracket LEDs | Displays NVIDIA Quadro Sync II status |
