VCNRTXA5500SYNC-PB

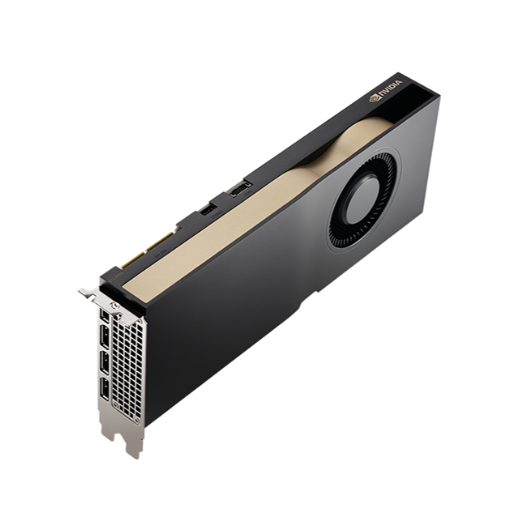

NVIDIA RTX A5500 + HW Sync
Description
Performance Highlights
Product |
NVIDIA RTX A5500 + HW SYNC |
|---|---|
Process Size |
8nm |
Transistors |
28.3 Billion |
Die Size |
628.4mm |
CUDA Cores |
10240 |
RT Cores |
84 |
Tensor Cores |
336 |
Single Precision (FP32) Performance |
34.1 TFLOPS |
RT Core Performance |
66.6 TFLOPS |
Tensor Core Performance |
272.8 TFLOPS |
GPU Memory |
24GB GDDR6 with ECC |
Memory Interface |
384-bit |
Memory Bandwidth |
768 GB/Sec |
Display Connectors |
DisplayPort 1.4a (4) |
NVENC | NVDEC |
1x | 2x (+ AV1 decode) |
Max Power Consumption |
250W |
Graphics Bus |
PCI Express 4.0 x16 |
Display Connectors |
DP 1.4a (4)3 |
System Interface |
PCI Express 4.0 x16 |
Form Factor |
4.4" H x 10.5" L Dual Slot |
Thermal Solution |
Active Fansink |
Maximum Power Consumption |
230W NVIDIA Power Guidelines |
Max Digital Resolution |
7 680 x 4320 x36 bpp at 60 Hz Quadro and NVS Display Resolution Support |
vGPU Software Support |
NVIDIA vPC (vPC), NVIDIA Virtual Applications (vApps), and NVIDIA RTX Virtual Workstation (vWS) |
vGPU Profiles Supported |
See vGPU Pricing and Licensing Guide |
NVIDIA 3D Vision and 3D Vision Pro |
Support via 3-pin mini-DIN |
Frame Lock |
Compatible with NVIDIA Quadro Sync II |
NVLink |
2-way low profile (2-slot and 3-slot) bridges connect 2x NVIDIA RTX A5500 |
NVLink Bandwidth |
112.5 GB/s bidirectional |
Quadro Sync II Connectors |
2x RJ45 Frame Lock + BNC Genlock |
Status LEDs on Bracket |
Displays Quadro Sync II status at a glance |
