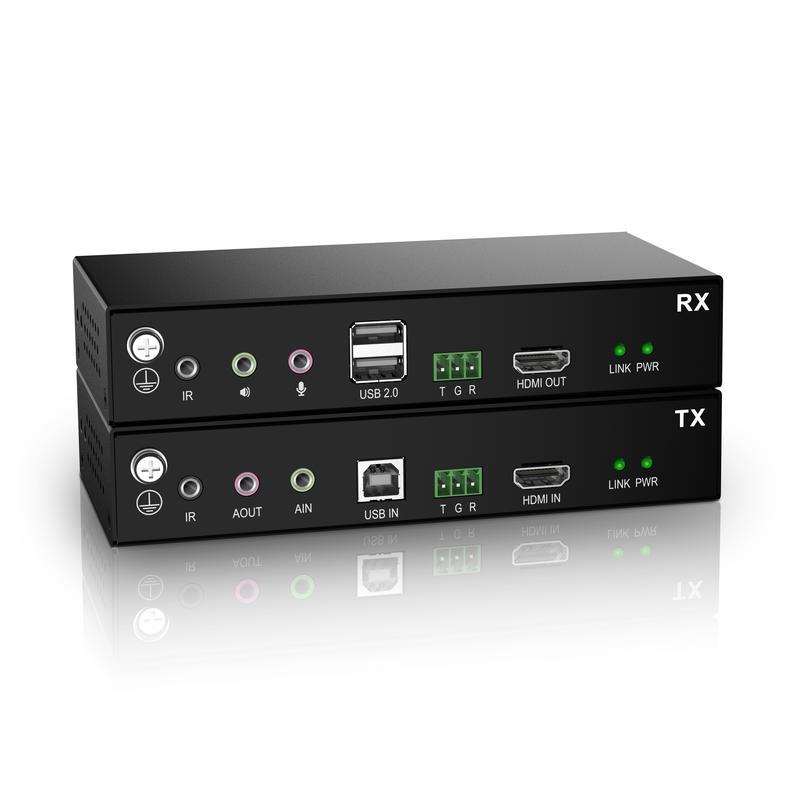

KFH162S
HDMI FHD Digital KVM Extender over Fiber/Cat5
Description
| Model No. | KFH162S_TX | KFH162S_RX | |
| Interfaces | HDMI in | 1 | NA |
| HDMI out | NA | 1 | |
| Power | 12V | 12V | |
| SFP+ Module | SFP+ x 1 | SFP+ x 1 | |
| Microphone | 3.5mm Stereo Jack (Pink) |
3.5mm Stereo Jack (Pink) | |
| Speaker | 3.5mm Stereo Jack (Green) |
3.5mm Stereo Jack (Green) | |
| LAN | RJ45 | RJ45 | |
| USB Type B | 1 | N/A | |
| USB 2.0 | N/A | USB x 4 | |
| Resolution | 3840x2160@30Hz | ||
| Connection Cable | Fiber optical cable or Cat5/6 cable | ||
| Power Input | DC12V /2A | DC12V / 2A | |
| Power Consumption | 3W | 2.5W (USB peripherals not included) |
|
| Operating Temperature | 0–50 ℃ | ||
| Storage Temperature | -20–60 ℃ | ||
| Humidity | 0–80% RH, Non-condensing | ||
| Material | Metal | ||
| Net Weight (kg) | 0.4 kg | 0.4kg | |
| Product Dimension (W × D × H) |
158 mm x 80 mm x 30mm | ||
| Package Dimension (W × D × H) |
260 mm x 102 mm x 179mm | ||
