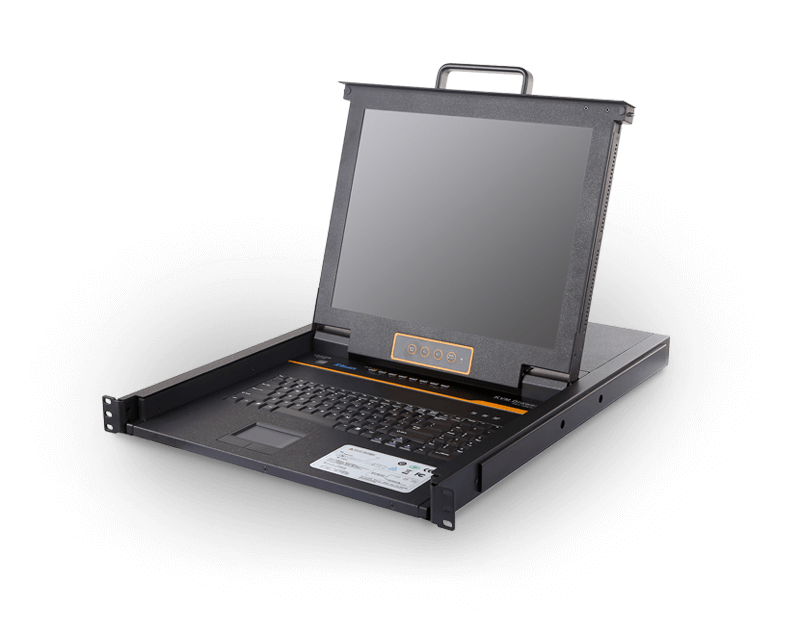

KVM-1708A
Single Rail 8-port 17” VGA LCD KVM Switch
Description
| Model | KVM-1708A | |
| Host Connections |
Direct | 8 |
| Maximum | 256 | |
| Emulation | Keyboard, mouse | USB |
| LCD | LCD Type | SXGA TFT |
| Display area | 17 " | |
| Best Resolution | 1280×1024@60Hz | |
| Color | 16.7 M | |
| Luminance | 250cd/m²（ T y p ） | |
| Contrast ratio | 1000 : 1 （ T y p ） | |
| Pixels intervals (mm) | 0.264(H) × 0.264(W) | |
| Touch Pad | X/Y resolution | >1000 / inch，（ 40 point /mm） |
| Wheel | Support wheel function | |
| Keyboard | 99 keys (82keys+17independent Number keys) | |
| Port Selection | OSD menu，hot key，Pushbuttons and mouse | |
| Power Input rating | 100V- 240Vac, 50~60Hz, <1.5A | |
| Power Consumption | 17W | |
| Operating temperature | 0—40 ℃ | |
| Store Temperature | -20～ 60 ℃ | |
| Humidity | 0~80% RH, Non-condensing | |
| Net Weight | 13.6kg | |
| Unit Dimensions (W x D x H) | 448mm×581mm×42.5mm | |
| Package Dimensions (W x D x H) | 765mm×615mm×185mm | |
| Optional Power Supply | -36V~ -72V DC | |
