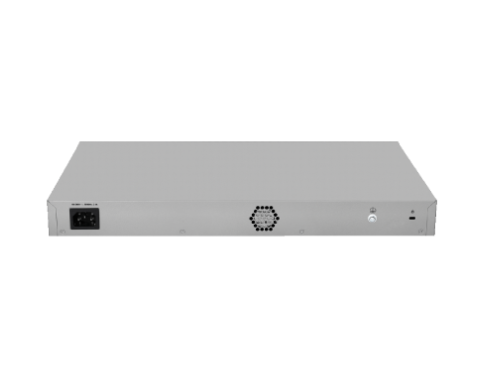

LIS-WX-8-BE

Weight

3.1kg (installed with dual power supplies)

Dimensions (W × D × H)

440 mm × 250 mm × 43.6 mm

Interface

LAN:

8 × GE ports

2 × SFP+ ports

WAN:

2 × 2.5GE ports

Console port

1 x Console port

USB port

1 x USB 2.0

Throughput

10Gbps

Power supply

Built in single power supply

Power consumption

12.1W to 29.5W

Modulation technology

802.11b: Direct-sequence spread spectrum (DSSS)

802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)

802.11ax/be: Orthogonal frequency-division multiple access (OFDMA)

Modulation mode

11b: BPSK, QPSK, CCK

11a/g/n: BPSK, QPSK, 16QAM, 64QAM

11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM

11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM

11be: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM

Data rates (Mbps)

802.11b: 1, 2, 5.5, 11

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

802.11n: 6.5 to 600 (NSS = 1 to 4, HT20 to HT40)

802.11ac: 6.5 to 6,933 (MCS0 to MCS9, NSS = 1 to 8, VHT20 to VHT160)

802.11ax: 7.3 to 9,608 (MCS0 to MCS11, NSS = 1 to 8, HE20 to HE160)

802.11be: 7.3 to 23,059 (MCS0 to MCS13, NSS = 1 to 8, EHT20 to EHT320)

Reset button

Restoration to factory default

Fan

Internal fans

Indicators (LED)

LEDs corresponding to different operating states indicate the boot loader status, system status, port status, power module status, and system fault status

Temperature

Operating temperature: 0°C to +45°C

Storage temperature: –40°C to +70°C

Humidity

Operating humidity: 5% to 95% (non-condensing)

Storage humidity: 5% to 95% (non-condensing)

Protection class

IP20

Operating Altitude

5000 meters

Safety standards

FDA 21 CFR Subchapter J

GB 4943.1

UL 62368-1

CAN/CSA C22.2 No 62368-1

IEC 62368-1

EN 62368-1

AS/NZS 62368-1

EMC standards

EN 55032

EN 55035

EN IEC 61000-3-2

EN 61000-3-3

CISPR 32

CISPR 35

GB/T 9254.1

GB/T 9254.2

GB 17626.1

GB 17626.2

IEC 61000-4-2

IEC 61000-4-3

IEC 61000-4-4

IEC 61000-4-5

IEC 61000-4-6

IEC 61000-4-8

IEC 61000-4-11

ETSI EN 300 386

MTBF (25°C)

145 hours

MTTR

1 hours
