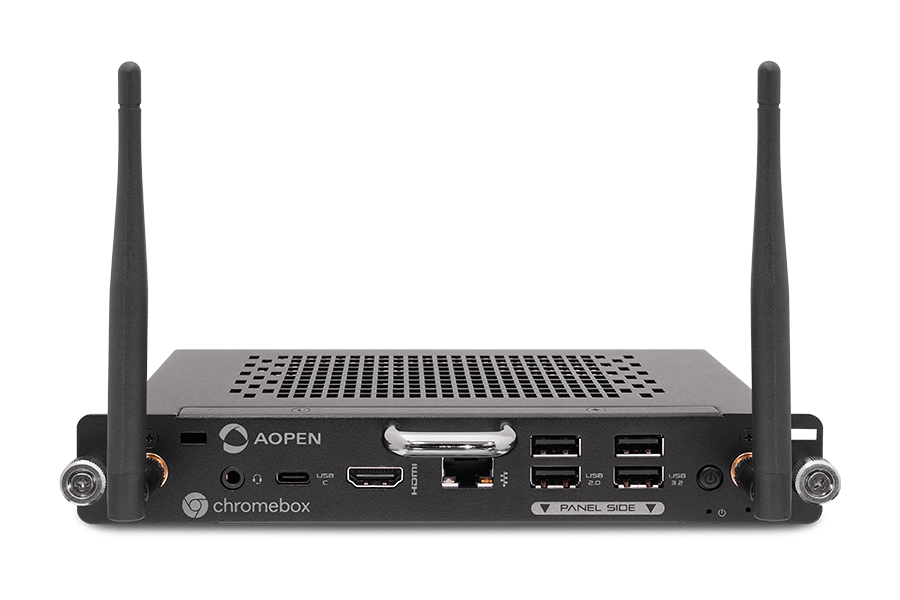

AOPEN Chromebox OPS
Powerful, OPS-Compliant, 4K UHD Plug-and-Play Solutions
Description
CPU
Intel Raptor Lake CPU
Memory
DDR4 3200MT/s, 8G
Graphics
Intel® UHD / Iris Xe Graphics - integrated on CPU
Audio
Type: High definition Audio
Channel: 5.1
Channel: 5.1
LAN
Giga LAN, 10/100/1000 Mbps
WiFi 6 802.11 b/g/n/ac/ax + BT5.2
WiFi 6 802.11 b/g/n/ac/ax + BT5.2
Storage
SSD 256G / 512G
Front Panel I/O
TX25 (OPS connector)
Rear Panel I/O
HDMI Port x 1 (2.0)
USB 2.0 Port x 2
USB 3.0 Port x 2 (3.2)
Type C x 1
RJ45 LAN Jack x 1
Audio x 1
Antenna Port x 2
Kensington Lock Hole x 1
Others : Recovery hole x 1
USB 2.0 Port x 2
USB 3.0 Port x 2 (3.2)
Type C x 1
RJ45 LAN Jack x 1
Audio x 1
Antenna Port x 2
Kensington Lock Hole x 1
Others : Recovery hole x 1
Dimensions (W x H x D)
200 x 119 x 30 mm
7.87 x 4.69 x 1.18 inch
7.87 x 4.69 x 1.18 inch
Volume
0.71 L
Weight
700g / 1.54 lb
Input Voltage
DC 12V ~ 19V
MTBF
50,000hrs
Operating Temperature
0 ~35ºC (32 ~ 95ºF)
Storage Temperature
-20 ~ 60ºC (-4 ~ 140ºF)
Relative Humidity
90% RH (50ºC non-Condensing)
