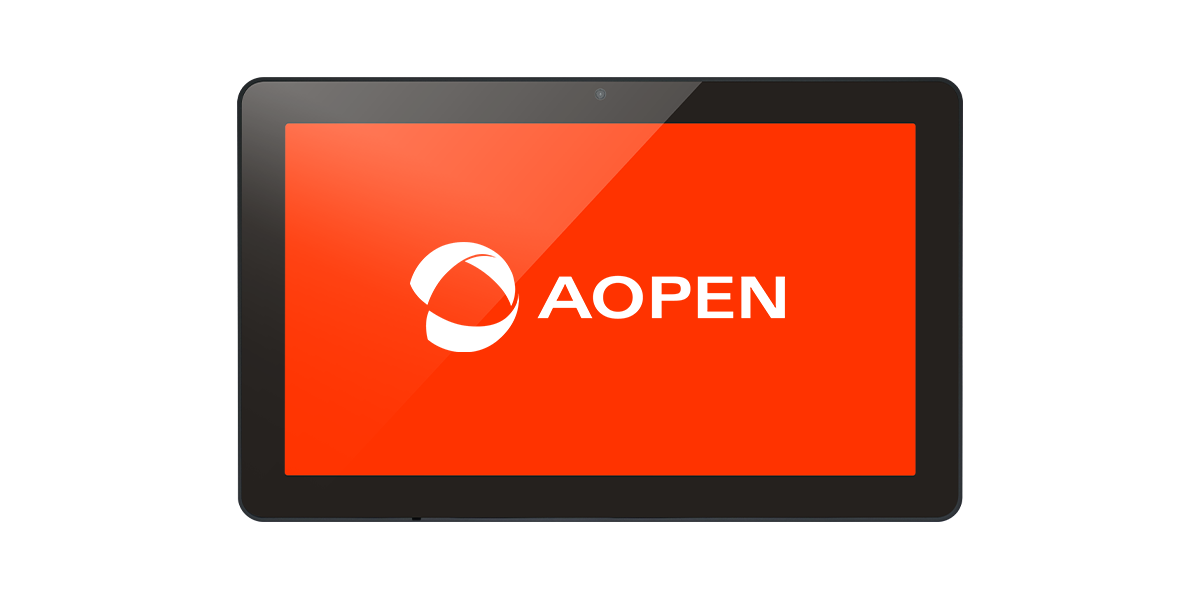

cTILE 15 Gen2 (IC15-F2)
Fanless, ruggedized, 24/7, Industrial, A commercial grade Chrome All-In-One
Description
Housing Material
Metal/Plastic
Dimensions (W x H x D)
397*247*49 mm
15.6"*9.7"*1.9" inch
Packing:
465*164*426 mm
18.3"*6.5"*16.8" inch
15.6"*9.7"*1.9" inch
Packing:
465*164*426 mm
18.3"*6.5"*16.8" inch
Weight
N.W: 3.84Kg / G.W: 5.5Kg
CPU
Intel Jasper Lake N4500
Memory
Channel Dual: Channel 2Gx4
Type: DDR4x
Data rate: 4266
Capacity: 8G
Type: DDR4x
Data rate: 4266
Capacity: 8G
Graphics
Intel HD graphic, integrated on CPU
Front Panel I/O
Resolution: 15.6" 1920x1080 (16:9)
Maximum Brigjtness: 250 nits
Panel Type: VA
Viewing angle: 178°/178°
Response time: 14ms
Contrast Ratio: 1000:1
Touch: PCT (10 points)
Maximum Brigjtness: 250 nits
Panel Type: VA
Viewing angle: 178°/178°
Response time: 14ms
Contrast Ratio: 1000:1
Touch: PCT (10 points)
Front Camera
Camera: 5M pixel
Audio
2W speaker x 2
LAN
Giga LAN x 1, 10/100/1000 Mbps
Storage
EMMC 32G
Security
Google TPM, Kensington lock
Storage Bay
Storage On Board EMMC 32G
Side Panel I/O
Power Button x 1 (Hidden type)
DC Jack x 1
HDMI Out Port x 1 (Option)
USB 3.0 Port x 3
Audio Set (Line-out, Mic-in): Audio Combo Jack x 1
others:
Recovery buttom x 1,
External Power Switch x 1
DC Jack x 1
HDMI Out Port x 1 (Option)
USB 3.0 Port x 3
Audio Set (Line-out, Mic-in): Audio Combo Jack x 1
others:
Recovery buttom x 1,
External Power Switch x 1
IP Grade
Front IP65 / Rear IPX2
Adapter
90W 19V 4.74A x 1
Input Voltage
AC 110 ~ 240V
MTBF
50000 hours
Operating Temperature
0 ~ 40ºC (32 ~ 104ºF)
Storage Temperature
-20 ~ 60ºC (-4 ~ 140ºF)
Relative Humidity
90% RH max
