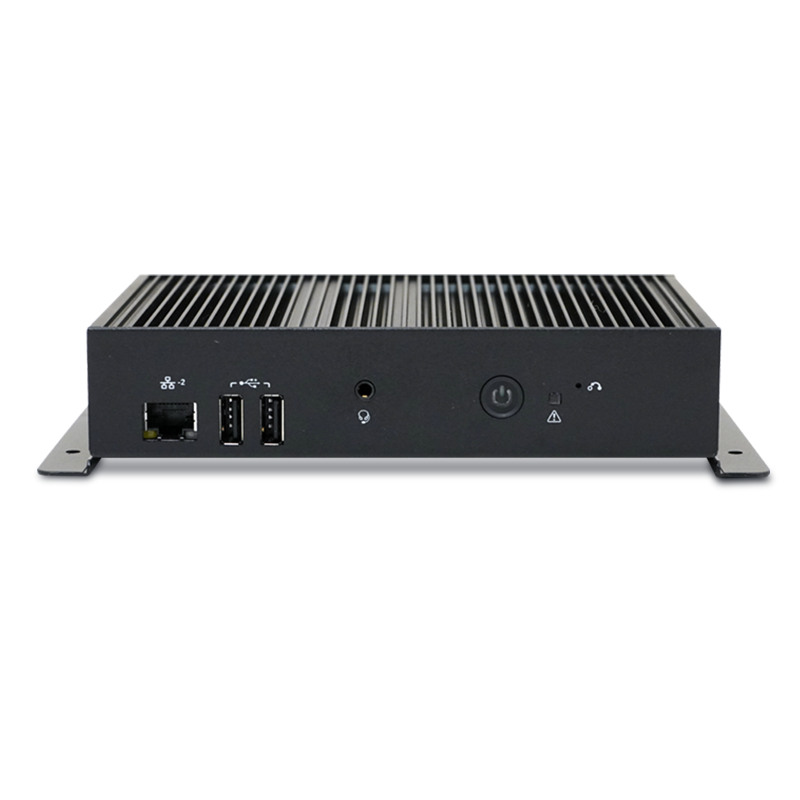

DE3650-C

Intel® Celeron® Processor J Series (Quad Core), TDP<=10W
Intel® Celeron® Processor N Series (Dual Core), TDP<=6W

N/A

N/A

Channels: Dual Channel
Type: DDR4 SO DOMM
Data Rate: 2666 / 3200 MHz
Max Memory: Max 20GB

Intel® UHD Graphic for 10 th Gen Processors

M.2 2280 x 1 (Key M for SSD)
M.2 2230 x 1 (Key E for WiFi)

Type: Realtek HD Audio Codec ALC897
Channel: Stereo

Chip: Maxlinear Gigabit x1, Intel® Gigabit x1
Speed: 10 / 100 / 1000 Mbps

Onboard: eMMC 64GB (optional)
M.2 SSD: M.2 2280 (Key M) NVMe

USB Port x 2 (USB 2.0)
Power Button x 1 (with Power/HDD LED)
Others:
CTIA Combo HD Audio x 1 (Speaker out & Mic-in),
USB 2.0 x 2,
2.5GbE LAN RJ45 x 1,
System Error LED x 1,
BIOS Recovery x1

DC Input x 1 (12 ~24V)
HDMI 2.0 x 1 (3840x2106@60Hz)
miniDP x 1 (4096x2160@60Hz)
USB 3.1 Gen 2 x 2
USB 2.0 x 2
RJ45 LAN Jack x 1
COM Port x 1
Antenna Holes x 2

AOPEN Fanless design

166 x 35 x 110 mm
6.54 x 1.38x 4.33 inch

0.64L

N.W: 1.1 kgs / 2.42 lbs
G.W: 1.42 kgs / 3.12 lbs

1 ~ 255 sec/min

40W Adapter

AC 100 ~ 240V

2 Years

50000 hours

-20 ~ 45ºC ( 4 ~ 113ºF)

-30 ~ 60ºC ( 22 ~ 140ºF)

90%RH @ 40°C (non-condensing)

Windows
Linux
AiCU
