DEV7130
Intel® 12/13/14th-Gen Raptor Lake-S desktop processor TDP=65W
Description
CPU
Socket: LGA1700
Type:
Intel 12th/13th/14th Gen Desktop CPU
TDP=65W/35W
Type:
Intel 12th/13th/14th Gen Desktop CPU
TDP=65W/35W
Chipset
Intel B760
Memory
Channel: Dual Channel
Type: DDR5 SO-DIMM x 2
Data rate: 4800/5600/6400
Max Memory: 96G
Type: DDR5 SO-DIMM x 2
Data rate: 4800/5600/6400
Max Memory: 96G
Graphics
Intel UHD Graphics 770
Expansion
PCIe Ge4 x16 slot x 1
M.2 slot x1, 2280 (key M for PCIe/SATA SSD)
M.2 slot x1, 2280 (key M for PCIe SSD)
M.2 slot x1, 2230 (key E for wifi)
M.2 slot x1, 2280 (key M for PCIe/SATA SSD)
M.2 slot x1, 2280 (key M for PCIe SSD)
M.2 slot x1, 2230 (key E for wifi)
Audio
Type: Realtek HD Audio
Channel: 5.1
Channel: 5.1
LAN
Realtek 2.5Gbe LAN x1 (RTL8165B)
100/1000/2500 Mbps
100/1000/2500 Mbps
Storage
M.2 SSD x 2

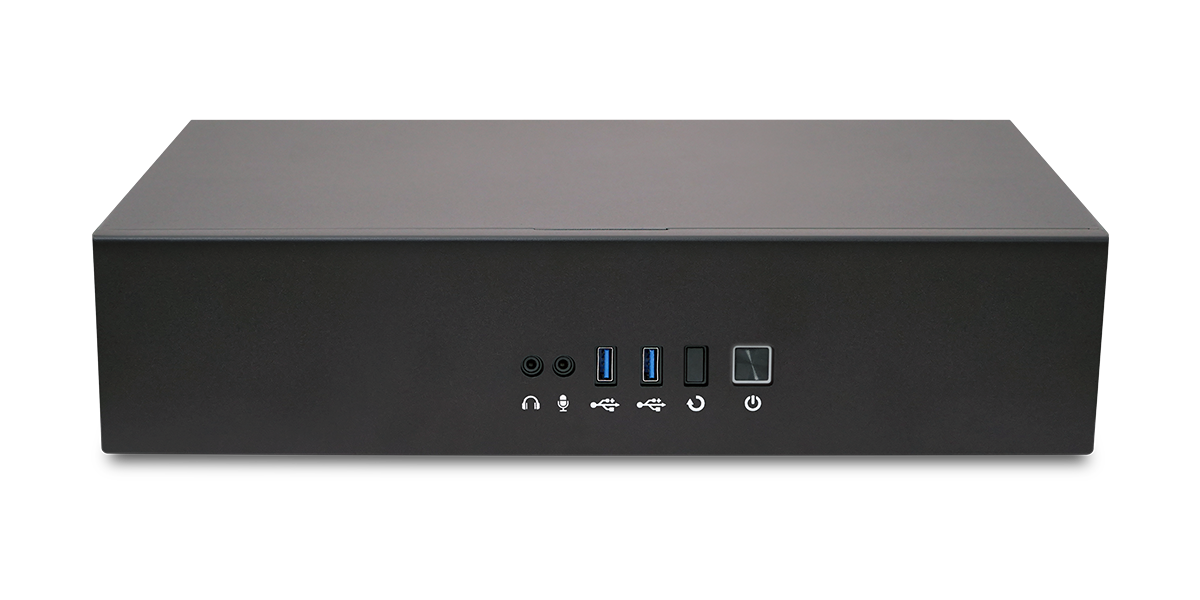

Front Panel I/O
USB 3.2 Port x 2
Others:
Power Button x1, Reset Button x1,
Mic-in x1,
Speaker x1
Others:
Power Button x1, Reset Button x1,
Mic-in x1,
Speaker x1
Rear Panel I/O
HDMI 2.0 Port x 1 (HDMI 1.4)
USB 2.0 Port x 2
USB 3.2 Port x 3
RJ45 LAN Jack x 1
DisplayPort x 1 (DP 1.2)
Audio Set:
Line-Out x 1
Mic-In x 1
Antenna Holes x 2
Others:
PS/2 Keyboard/Mouse x1, Line-in x1, USB-C x1
USB 2.0 Port x 2
USB 3.2 Port x 3
RJ45 LAN Jack x 1
DisplayPort x 1 (DP 1.2)
Audio Set:
Line-Out x 1
Mic-In x 1
Antenna Holes x 2
Others:
PS/2 Keyboard/Mouse x1, Line-in x1, USB-C x1
CPU Thermal Module
AOpen Thermal Module
Dimensions (W x H x D)
395 x 86.5 x 300 mm
15.55 x 3.41 x 11.81 inch
15.55 x 3.41 x 11.81 inch
Volume
10.25L
Weight
5.3 kgs / 11.66 lbs
Adapter
600W Flex PSU
Input Voltage
AC 100 ~ 240V
MTBF
50,000hrs
Operating Temperature
0 ~50ºC (32 ~ 122ºF)
Storage Temperature
-30 ~ 60ºC (-22 ~ 140ºF)
Relative Humidity
95% RH (50ºC non-Condensing)
Support
Windows
Linux
Linux
