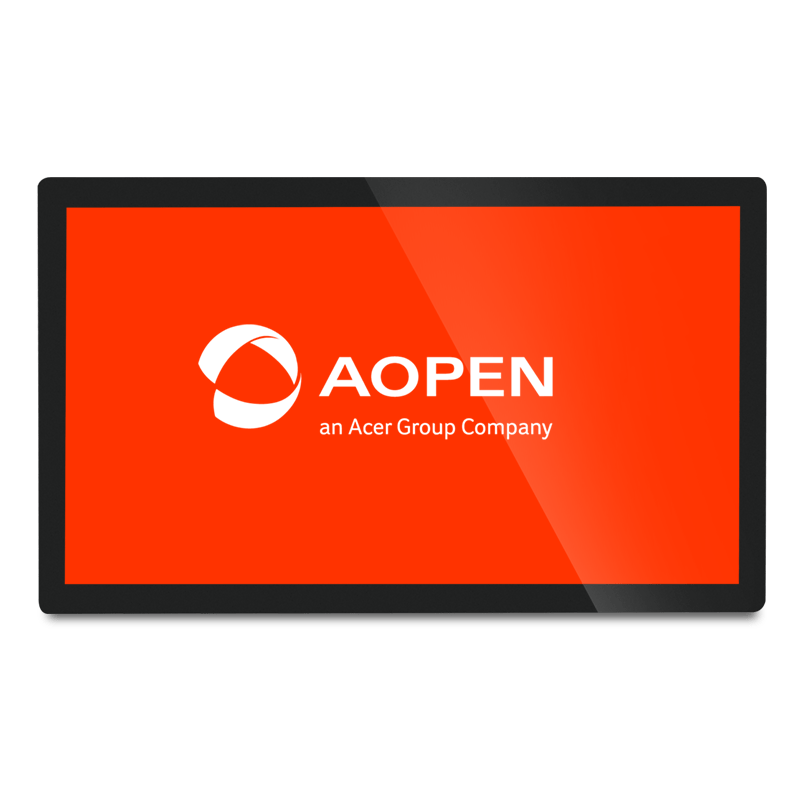

DT22VW2-O
21.5" Commercial Grade Open Frame Display
Description
Housing Material
Metal with implanted IP design
Unit Size (WxHxD mm)
515.4 x 310.8 x 45.9 mm
Display Size
21.5"
Packaging Size (WxHxD mm)
600 x 395 x 170 mm
Active Display Area (H x V)
476.64 x 268.11 mm
Mounting
Rear: 75 x 75mm and 100 x 100mm VESA mount
Side: Mounting brackets on all four sides
Side: Mounting brackets on all four sides
Net Weight (kg)
5.88 Kg
Gross Weight (kg)
8.3
Kg
Kg
Resolution
16:9, 1920 x 1080, 60Hz
Brightness (cd/m2)
250cd/m²
Panel Type
VA
Viewing Angle
Horizontal: 85/85
Vertical: 80/80
Vertical: 80/80
Response Time
12ms
Contrast Ratio
1000:1
Touch Technology
Touch Glass: Projected capacitive touch, 21.5 inch, 3.0mm chemically strengthened glass, 7H
Touch Controller: 10 points touch
Touch Controller: 10 points touch
Colour
16.7M
Glass Hardness
3.0mm chemically strengthened glass, 7H
Rear Panel I/O
HDMI type A
USB for touch (5V input from USB host)
VGA DB 15 female
RJ45 for OSD remoter
DC-in for adapter
USB for touch (5V input from USB host)
VGA DB 15 female
RJ45 for OSD remoter
DC-in for adapter
Side Panel I/O
N/A
System I/O
N/A
Adapter
12Vx3A
Input Voltage
DC input 12V/3A
Warranty
3 years
Operation Temperature
Operation: 0ºC ~ 50ºC (32ºF~ 122ºF)
Storage: -20ºC ~ 60ºC ( 4ºF~ 140ºF)
Storage: -20ºC ~ 60ºC ( 4ºF~ 140ºF)
Operation Humidity
90% RH (40ºC non-condensing)
Certifications
FCC / CE(Class B) / ROHs
