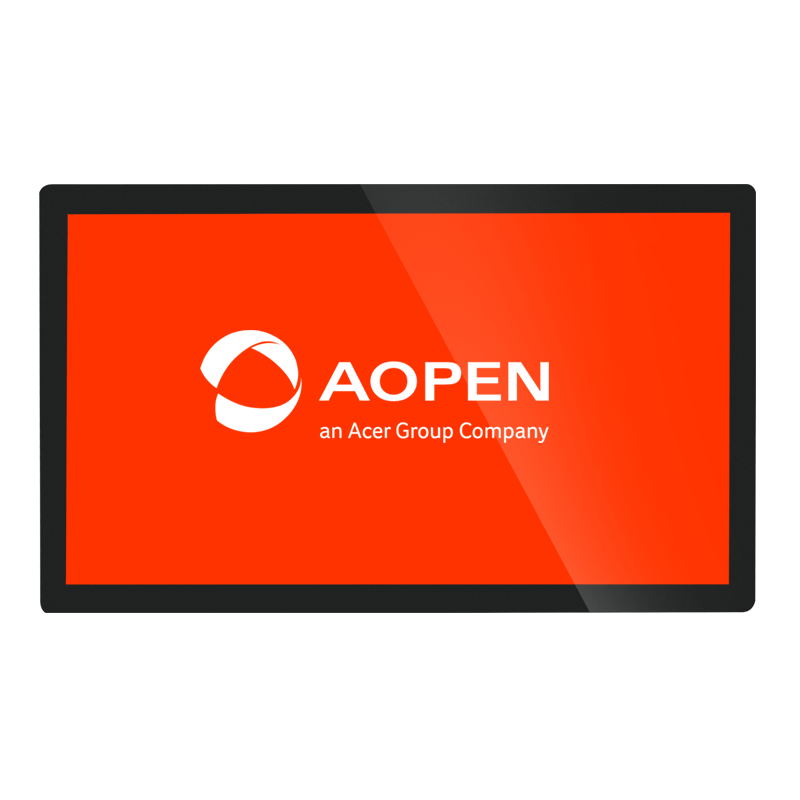

DT27VW3-O
27" Commercial Grade Open Frame Display
Description
Housing Material
Metal with implanted IP design
Unit Size (WxHxD mm)
644.2 x 388.4 x 44.1 mm
Display Size
27"
Packaging Size (WxHxD mm)
720 x 465 x 135 mm
Active Display Area (H x V)
597.6 x 336.15 mm
Mounting
Rear: 100x100mm and 100x200mm VESA mount
Side: Mounting brackets on all four sides
Side: Mounting brackets on all four sides
Net Weight (kg)
8.3 Kg
Gross Weight (kg)
11.4 Kg
Resolution
16:9, 1920 x 1080, 60Hz
Brightness (cd/m2)
300cd/m²
Panel Type
VA
Viewing Angle
Horizontal: 89/89
Vertical: 89/89
Vertical: 89/89
Response Time
12ms
Contrast Ratio
3000:1
Touch Technology
Touch Glass: Projected capacitive touch, 27 inch, 3.0mm chemically strengthened glass, 7H
Touch Controller: 10 points touch
Touch Controller: 10 points touch
Colour
16.7M
Glass Hardness
3.0mm chemically strengthened glass, 7H
Rear Panel I/O
HDMI type A
USB for touch (5V input from USB host)
VGA DB 15 female, RJ45 for OSD remoter
DC in for adapter
USB for touch (5V input from USB host)
VGA DB 15 female, RJ45 for OSD remoter
DC in for adapter
Side Panel I/O
N/A
System I/O
N/A
Adapter
12Vx5A
Input Voltage
DC input 12V/5A
Warranty
3 years
Operation Temperature
Operation: 0ºC ~ 50ºC (32ºF~ 122ºF)
Storage: -20ºC ~ 60ºC ( 4ºF~ 140ºF)
Storage: -20ºC ~ 60ºC ( 4ºF~ 140ºF)
Operation Humidity
90% RH (40ºC non-condensing)
Certifications
FCC / CE(Class B) / ROHs
