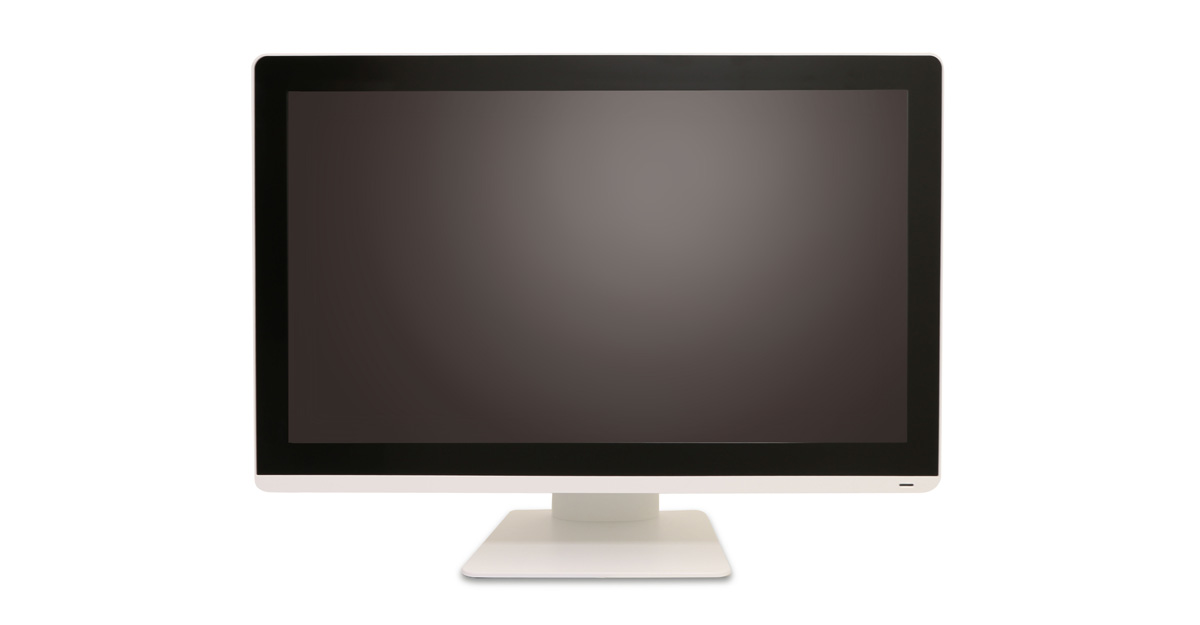

dTILE 2162M
21.5" Certified medical grade monitor
Description
Unit Size (WxHxD mm)
536.5 x 389.9 x 175 mm (with stand)
537 x 339 x 69 mm (without stand)
537 x 339 x 69 mm (without stand)
Packaging Size (WxHxD mm)
612 x 219x 475 mm
Active Display Area (H x V)
476.1 x 267.8 mm
Pixel Pitch (H x V)
0.248 x 0.248 mm
Mounting
VESA 100 x 100 mm
Net Weight (kg)
8.2 kgs
Gross Weight (kg)
11.2 kgs
Resolution
21.5’’ 1920 x 1080 (scalable to 16:9/5:4/4:3/1:1)
Brightness (cd/m2)
350 NITS
Panel Type
AHVA
Viewing Angle
178 / 178
Response Time
22ms
Contrast Ratio
1000:1
Touch Technology
PCT supports 10 points with Anti Glare Coating
Gamma
Gamma 2.2 / DICOM , 10 bits Gamma LUT
Side Panel I/O
Scrolling Button x 1
System I/O
DC Jack x 1
VGA x 1
DVI x 1
DP x 1
USB2.0 x 1
COM Port x 1
Audio-In x 1
VGA x 1
DVI x 1
DP x 1
USB2.0 x 1
COM Port x 1
Audio-In x 1
Adapter
60W / 24V / 2.5A
Input Voltage
AC 100 ~ 250V
Warranty
3 Years
Operation Temperature
0 ~ 40 °C (0 ~ 104 °F)
Operation Humidity
-20 ~ 60 °C (-4 ~ 140 °F)
Certifications
cTÜVus 60601-1, CB 60601, CE, FCC-B
