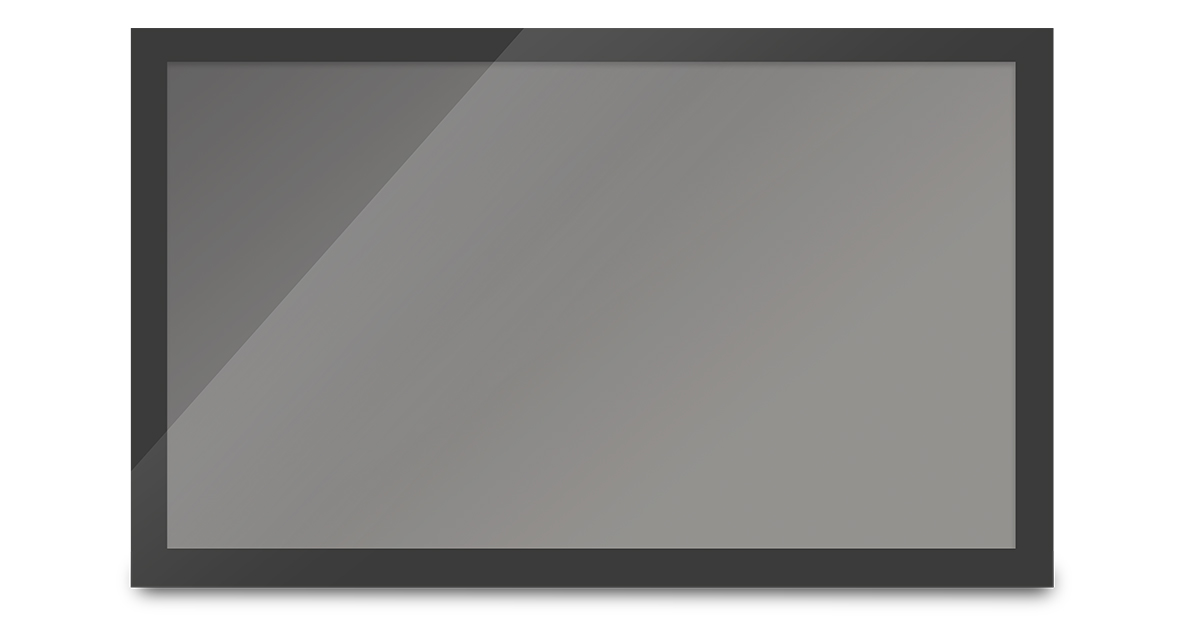

dTILE 32-D
31.5" Commercial Grade Open Frame
Description
Housing Material
Metal with implanted IP design
Unit Size (WxHxD mm)
749 x 455 x 58 mm
Display Size
31.5"
Packaging Size (WxHxD mm)
865 x 565 x 166 mm
Active Display Area (H x V)
699 x 393 mm
Mounting
Rear: 400x200mm VESA mount
Side: Mounting brackets on all four sides
Side: Mounting brackets on all four sides
Net Weight (kg)
13.3 kgs
Gross Weight (kg)
18.62 kgs
Resolution
16:9, 1920 x 1080px, 60Hz
Brightness (cd/m2)
400cd/m²
Panel Type
VA
Viewing Angle
Horizontal: 89/89
Vertical: 89/89
Vertical: 89/89
Response Time
6ms
Contrast Ratio
1400:1
Touch Technology
Touch Glass: Projected capacitive touch, 27 inch, 3.0mm chemically strengthened glass, 7H
Touch Controller: 10 points touch
Touch Controller: 10 points touch
Colour
16.7M
Glass Hardness
3.0mm chemically strengthened glass, 7H
Rear Panel I/O
HDMI type A
USB for touch (5V input from USB host), VGA DB-15 female
RJ45 for OSD remoter
AC-in for AC power
USB for touch (5V input from USB host), VGA DB-15 female
RJ45 for OSD remoter
AC-in for AC power
Side Panel I/O
Power Button x 1
System I/O
N/A
Adapter
95W / 19V
Input Voltage
AC input 100~240 VAC, 50/60Hz
Warranty
3 Years
Operation Temperature
0 ~ 50ºC (32 ~ 122ºF)
Operation Humidity
90% RH (40 ºC non-Condensing)
