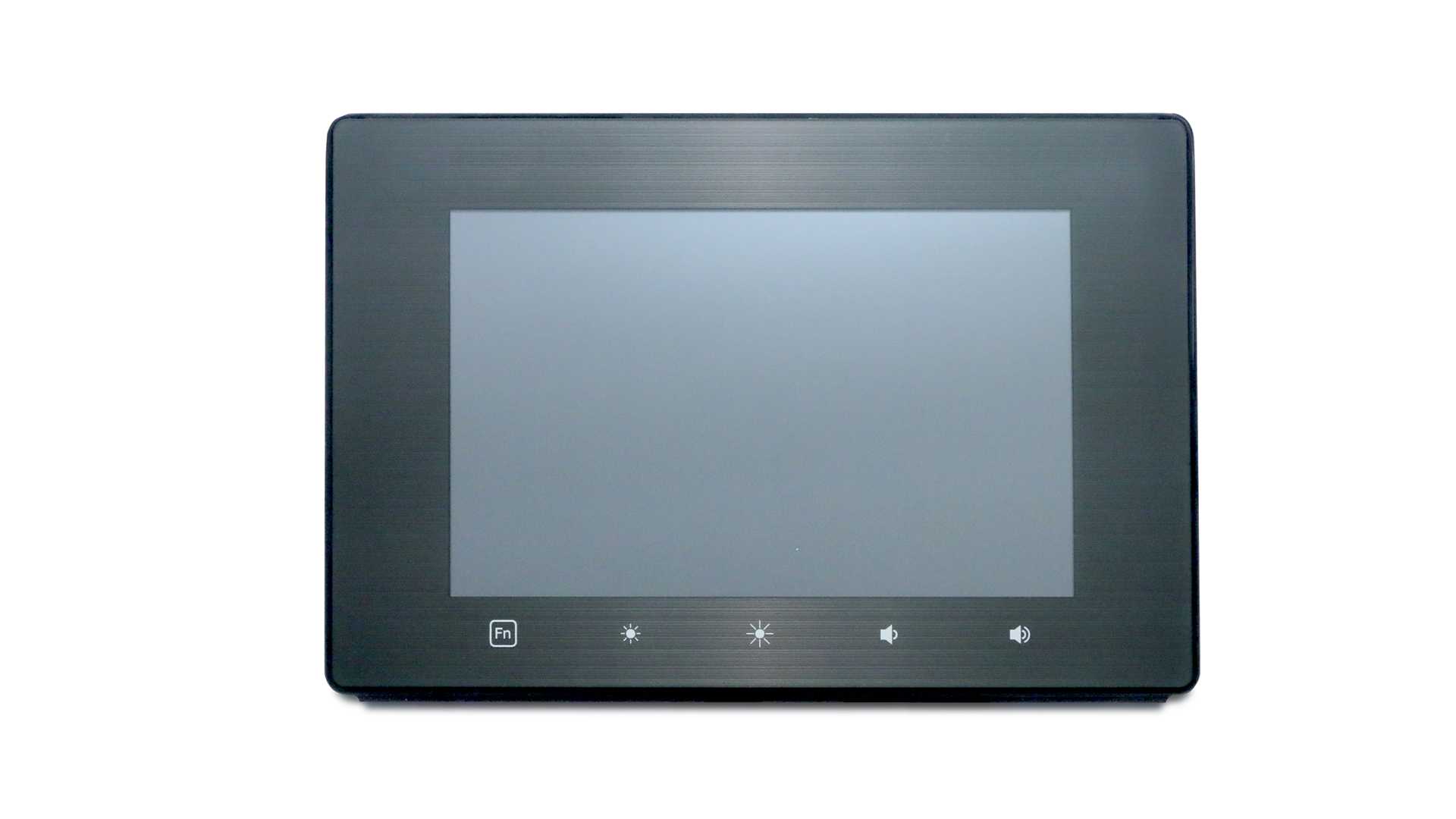

eTILE-X10-FP
10" all-in-one for industrial applications
Description
Housing Material
Metal
Dimension (W x H x D)
306 x 206 x 33.3 mm
Weight
2.53kgs
CPU
Supports Intel® Celeron® CPU
Default configuration J3455
Default configuration J3455
Chipset
CPU Built-in
Memory
Channel: Dual Channel
Type"DDR3L SO-DIMM x 2
Data Rate: 1333MHz
Max Memory: 8GB
Type"DDR3L SO-DIMM x 2
Data Rate: 1333MHz
Max Memory: 8GB
Graphics
Integrated Intel® CPU
Resolution
10.1" 1280 x 800 (16:9)
Maximum Brightness
400 NITS
Panel Type
VA
View Angle (CR>10)
170 / 170
Response time
30ms
Contrast Ratio
900:1
Touch
PCT supports 5 points
Expansion Slot
M.2 x3
Audio
Realtek HD Audio Codec ALC269
LAN
Realtek RTL8111H
Storage
M.2 SSD (Default 64GB)
Security
-
Storage Bay
-
Front Camera
-
Side Panel I/O
-
System I/O
Brightness up and down x 2 (virtual keys)
HDMI-out x 1
USB3.0 x 4
RJ45 LAN x 1 (PoE)
Line-out x 1
Mic-in x 1
Extended Power Switch
Embedded Antenna
HDMI-out x 1
USB3.0 x 4
RJ45 LAN x 1 (PoE)
Line-out x 1
Mic-in x 1
Extended Power Switch
Embedded Antenna
Watchdog Timer
1 ~ 255 SEC./ min
IP Grade
IP65, IK08
Adapter
POE 802.3at
Input Voltage
AC 100 ~ 240V
Warranty
3 years
MTBF
50,000hrs
Operating Temperature
0 ~50°C (32 ~ 122 °F)
Storage Temperature
-20 ~ 60°C (-4 ~ 140 °F)
Relative Humidity
90% RH (40°C non-Condensing)
