WB5500
Powerful computing OPS media player
Description
CPU
7th Generation Intel® Core™
(i5, i7)
(i5, i7)
Chipset
-
AiCU
-
Memory
Dual Channel
DDR4 SO-DIMM x 2
2133 MHz
32G (based on OS Support)
DDR4 SO-DIMM x 2
2133 MHz
32G (based on OS Support)
Graphics
Intel® UHD Graphics 550 or 650
Expansion
Mini Card x 1
Audio
Realtek HD Audio ALX283-CGT
LAN
Intel® Giga LAN
10 / 100 / 1000 Mbps
10 / 100 / 1000 Mbps
Storage
2.5'' SATA HDD x 1
M.2 SSD x 1
M.2 SSD x 1

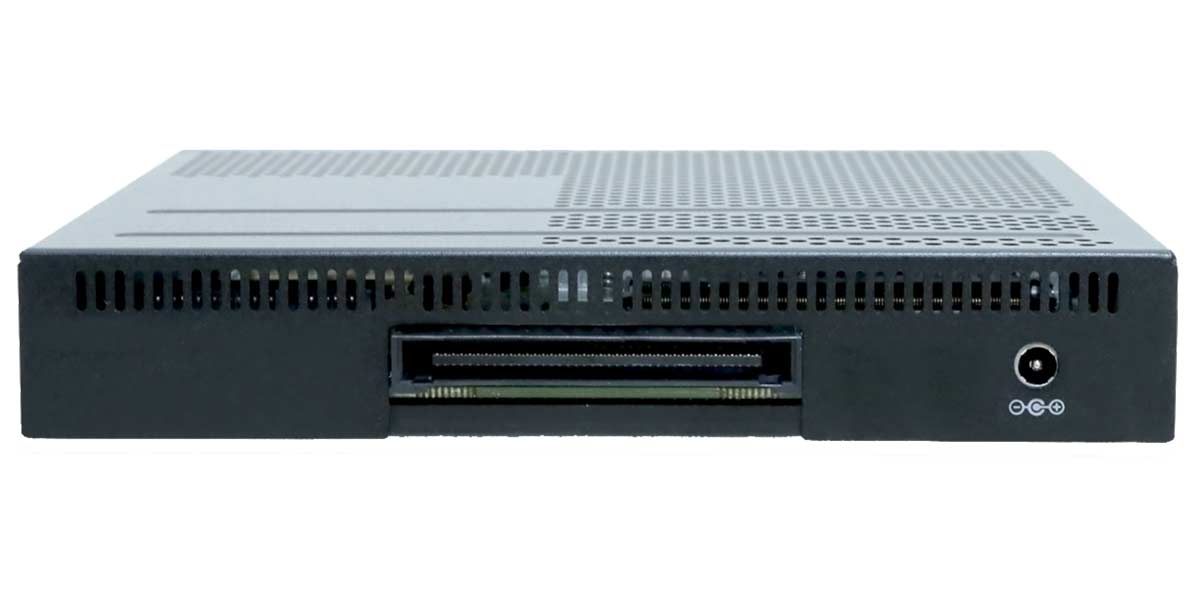

Front Panel I/O
80 pin JAE TX25A Connector x 1
DC Jack x 1 (19V)
DC Jack x 1 (19V)
Rear Panel I/O
HDMI 1.4 x 1
USB 2.0 x 2
USB 3.0 x 4
RJ45 LAN x 1
Audio Line-out x 1
Audio Mix-in x 1
Antenna Holes x 2
USB 2.0 x 2
USB 3.0 x 4
RJ45 LAN x 1
Audio Line-out x 1
Audio Mix-in x 1
Antenna Holes x 2
CPU Thermal Module
AOPEN Thermal Module
Dimensions (W x H x D)
173 x 30 x 180 mm
6.81 x 1.18 x 7.09 inch
6.81 x 1.18 x 7.09 inch
Volume
0.93L
Weight
0.85 kgs
WatchDog Timer
1 ~ 255 SEC./min
Adapter
65W / 19V Adapter
Input Voltage
Via TX25A DC 12 ~ 19V
Via DC Jack 19V
Via DC Jack 19V
Warranty
2 Years
MTBF
50.000 hrs
Operating Temperature
0 ~ 50 °C (32 ~ 122 °F)
Storage Temperature
-20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity
90% RH (50º non-condensing)
