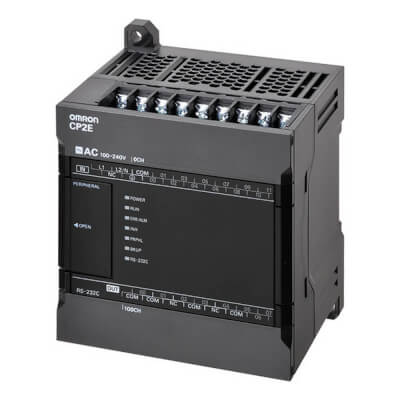

CP2E-E14DR-A
API compact CP2E - Type essentiel ; 8 DI, 6 DO ; Sortie relais ; Alimentation 220 V c.a. ; Mémoire programme 4 kPas
Description
| Supply voltage type | AC |
| Input type | PNP/NPN |
| Number of digital inputs | 8 |
| Output type | Relay |
| Number of digital outputs | 6 |
| Program capacity | 8 K steps |
| Data memory capacity | 4 K words |
| Logic execution time | 0.23 µs |
| Communication port(s) | Serial RS-232C, USB |
| Number of Ethernet ports | 0 |
| Number of USB ports | 1 |
| Number of RS-232 ports | 1 |
| Number of RS-485 ports | 0 |
| Communication option(s) | None |
| Number of encoder input channels | 6 |
| Max. encoder input frequency | 100 kHz |
| Max. number of PTP axes | 0 |
| Max. pulse output frequency | 0 kHz |
| Function Block programming | |
| Battery-free memory backup | |
| Real-time clock | |
| Analogue option boards | |
| Max. number of analogue I/O channels | 0 |
| Max. number of local I/O points | 14 |
| Max. number of expansion units | 0 |
| Built-in auxiliary 24 VDC output | 0 mA |
| Operating temperature range | -20-60 °C |
| Product Height (unpacked) | 90 mm |
| Product Width (unpacked) | 86 mm |
| Product Depth (unpacked) | 80 mm |
| Product Weight (unpacked) | 405 g |
