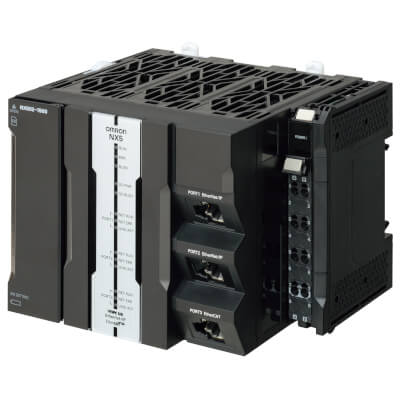

NX502-1300
Sysmac NX5 CPU avec connexion base de données SQL, programme 80 Mo et 260 Mo de mémoire de données, EtherCAT intégré (16 axes servo, total de 256 nœuds EtherCAT), 2 ports Ethernet (OPC-UA et EtherNet/IP)
Description
| Controller functionality | DB connection, Motion control, OPC-UA, Sequence control |
| Primary task cycle time | 0.250 ms |
| Program memory | 80 MB |
| Variables memory | 260 MB |
| Max. number of synchronous axes | 16 |
| Max. number of axes (incl. virtual) | 32 |
| Communication port(s) | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
| Communication option(s) | EtherCAT Slave, Ethernet TCP/IP, IO-Link, Serial RS-232C, Serial RS-422, Serial RS-485 |
| Max. number of remote I/O nodes | 256 |
| I/O system | NX I/O Bus |
| Max. number of expansion units | 63 |
| Product Weight (unpacked) | 946 g |
