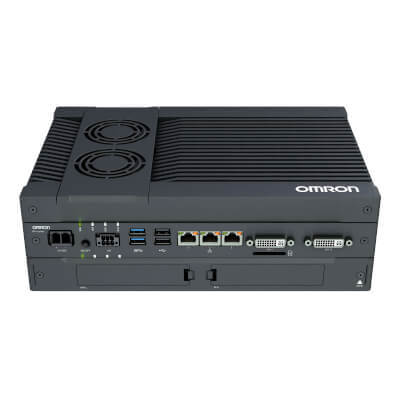

NY512-1300-1XX443K2X
Contrôleur de machine pour 16 axes, Boitier PC industriel avec Intel® Core™ i5-7440EQ, 8 Go RAM (non ECC), 128 Go SSD MLC, Windows 10 IoT Enterprise 2019 LTSC - 64 bits, DVI-D
Description
| IPC type | Box PC |
| Controller type | Machine Control |
| Max. number of motion axes | 16 |
| Processor family | Intel® Core™ i5 |
| Processor specification | 7440EQ (2.9 GHz) |
| Cooling method | Active cooling (fan) |
| Memory | 8 GB RAM (non ECC) |
| Storage | 128 GB SSD MLC |
| Operating system | Windows 10 IoT Enterprise 2019 LTSC - 64 bit |
| Expansion slot | 1 x PCIe slot (X4 lanes) |
| Modular port | DVI-D |
| Communication port(s) | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, USB |
| Video output | DVI-I |
| Material housing | Aluminium, black |
| Degree of protection (IP) | IP20 |
| Operating temperature | 0-55 °C |
| Supply voltage DC | 20.4-28.8 V |
| Product Height (unpacked) | 89 mm |
| Product Width (unpacked) | 282 mm |
| Product Depth (unpacked) | 195 mm |
| Product Weight (unpacked) | 3800 g |
