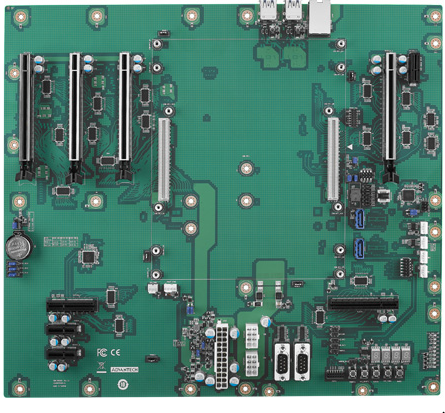

SOM-DH7000

COM-HPC® Server Carrier for Size E (Proprietary)

• PICMG COM-HPC® Server pinout
• COM-HPC® Size E (Proprietary)
• Rich extension: 4 x PCIe x16, 1 PCIe x8, 1 PCIe x4, 2 PCIex1 (Gen 5)
• 1 PCIe x1 reserved for BMC add-in card
• Max. power 225W supplying for server grade processor
• Visible Debug Utility: BIOS 80 Port and Power State
