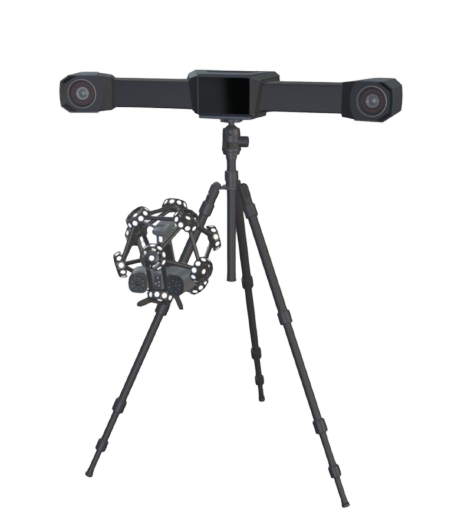

TMScan Pro
Wireless 3D Dynamic Tracking & Scanning System with Expanded Range
Description
- Marker-Free & Wireless Scanning
- Max. 8.6 m Tracking Distance & 206.7 m³ Tracking Volume
- Integrated Video Photogrammetry (VPG)
- Compatible with FreeProbe (Optional)
-
Technical Data
- Volumetric accuracy (based on measuring range)15.6 m³: 0.046 mm; 45 m³: 0.063 mm; 76 m³: 0.088 mm; 128 m³: 0.127 mm
- Volumetric accuracy with VPG0.044 + 0.012 mm/m (extension volume)
- High-speed scanIncluded (50 laser lines)
- Detailed scanIncluded (7 parallel laser lines)
- Deep pockets scanIncluded (1 laser line)
- WeightFreeTrak W: 8.2 kg; TE25W: 1.47 kg
- ConnectionWireless & Wired mode (fiber optic)
- CertificationsCE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50,
TELEC, TiSAX - Acceptance testVDl/VDE 2634 Part3 (certificated in
ISO 19825 certificated accuracy lab)
