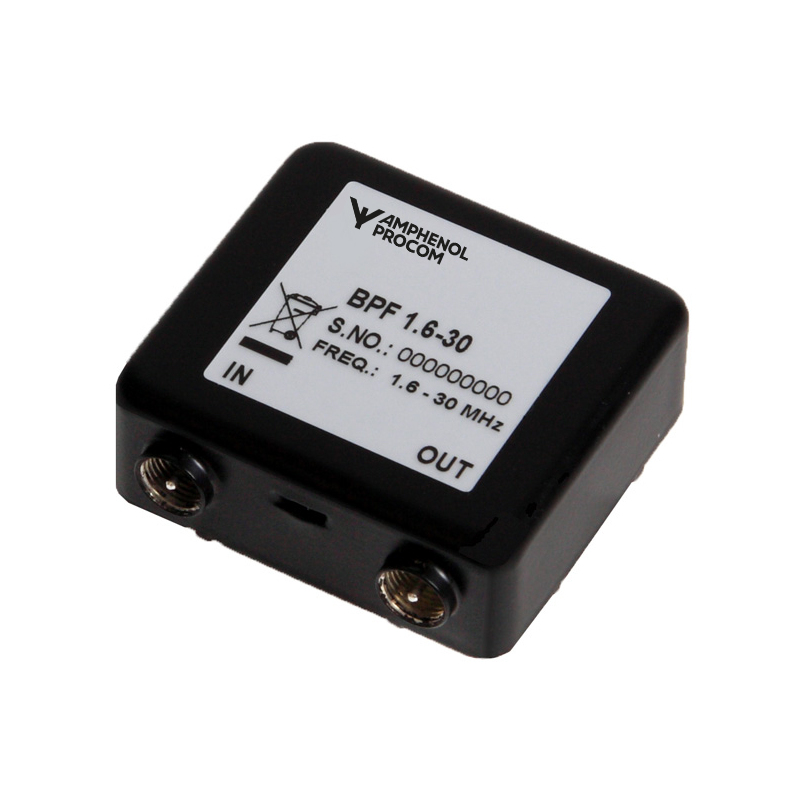

BPF 1.6-30
Band-Pass Filter for the 1.6 – 30 MHz range
Description
- Miniature LC band pass filter
- Allows the whole 1.6 – 30 MHz range to pass
- High attenuation of the LW and MW radio bands.
- Series coupled high/low pass filter design.
- Chebychev characteristic ensures low insertion loss and high out-of-band rejection.
- Can be used as transmitter filter to prevent out-of-band and harmonics radiation.
- Can be used as a preselector filter to protect a receiver against interferences from transmitters outside the bandpass range.
- Very small dimensions, mounted in a 48 x 50 mm box. FME-male connectors on both ports.
- Provided with dual adhesive pad for quick installation.
- BPF 1.6-30 is lacquered with black vinyl enamel to avoid corrosion.
