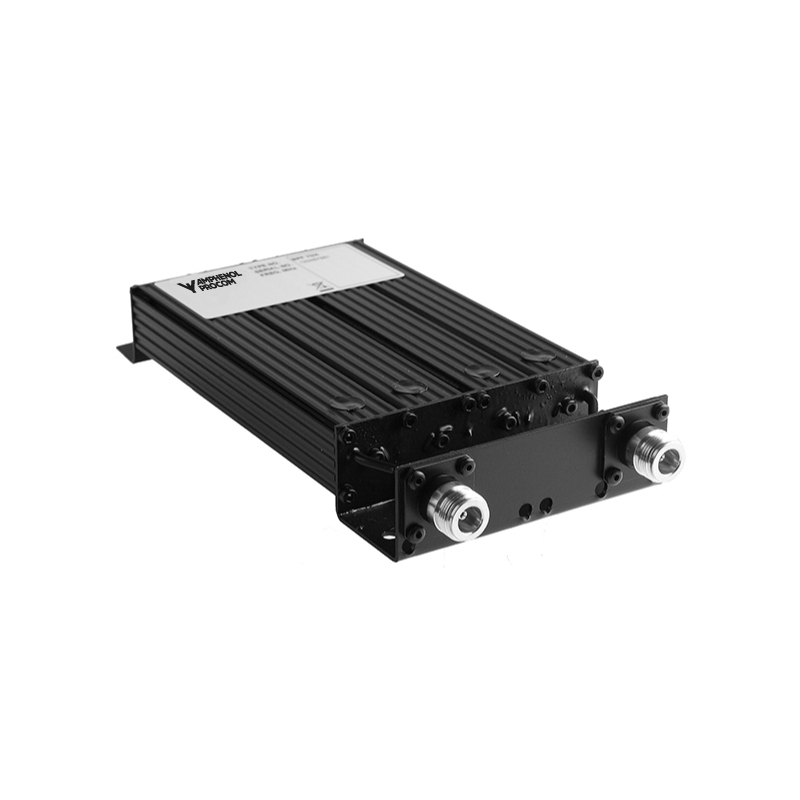

BPF 70/4-XL
Band-Pass Filter for the 350 MHz Band
Description
- The BPF 70/4-XL is a 4 resonator ¼ λ band-pass filter with inductive coupling between the resonators.
- This filter can be used as a preselector to protect a receiver from interference from transmitters outside the band-pass limits.
- When installed at the output of a transmitter, the BPF 70/4-XL reduces spurious signals.
- The BPF 70/4-XL is adjustable over the range 300 – 380 MHz.
- Careful choice of materials ensures reliable functioning over a wide temperature range.
- Extruded aluminium sections, steel racks, coax cables and connectors with teflon insulation ensure good mechanical strength.
- BPF 70/4-XL is coated with black vinyl to prevent corrosion.
- The filter is delivered in standard version with 4 MHz bandwidth, other bandwidths can be requested when ordering (up to 8 MHz)
