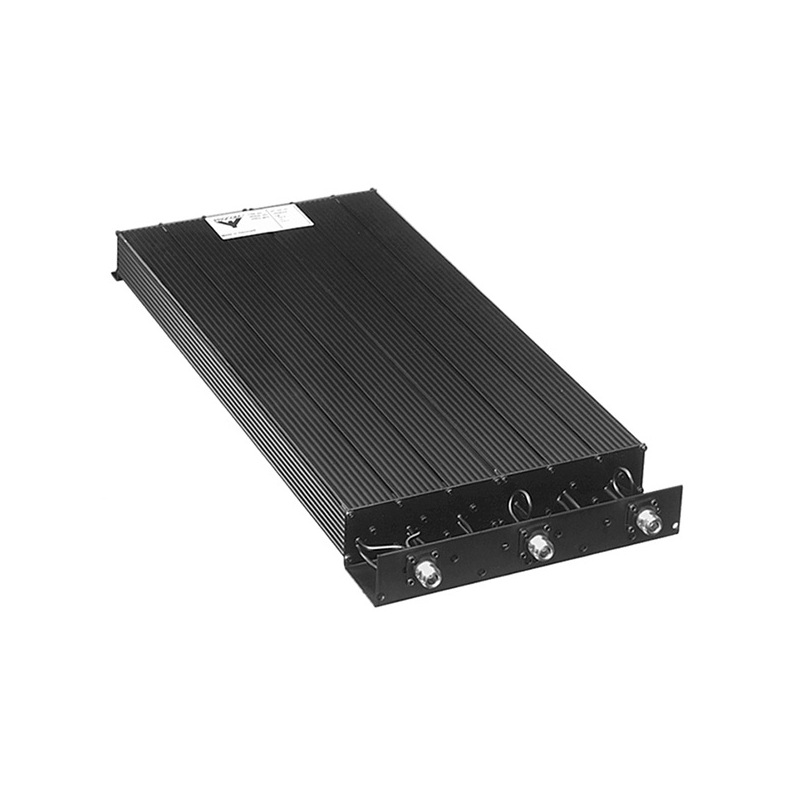

DPF 70/6-150 (¾ λ resonators)
6-Cavity High Power Base Station Duplexers for the UHF 450 MHz range
Description
- 150 W base station duplexers.
- The ¾ λ models are continuously tunable from 406 MHz to 470 MHz.
- Low insertion loss due to silver-plated, temperature compensated resonator elements in high-Q 40 x 40 mm cavities.
- Single channel tuned as standard.
- Multi-channel tuning possible with slightly reduced data (factory tuning recommended).
- Fully environmentally tested.
