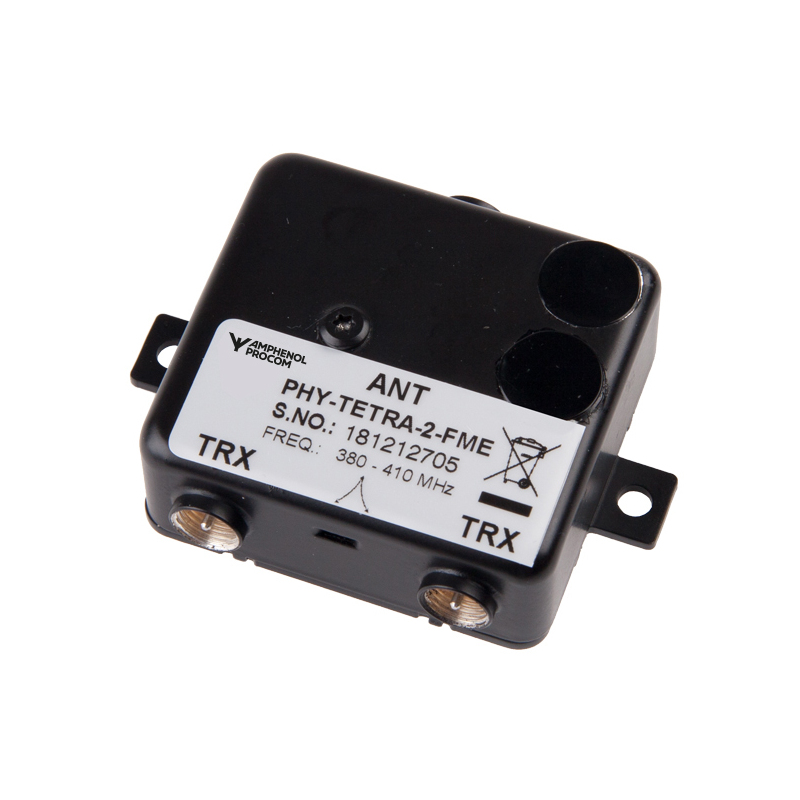

TETRA combiner with VSWR adaption/adjustment network
Description
- Combiner for coupling of two TETRA mobile transceivers on one common antenna.
- Factory-adjusted to either 380 – 410 MHz or 400 – 430 MHz.
- Compact dimensions – especially suitable for mobile applications.
- FME-connectors for direct connection of FME-cable without extra adapter.
- For parallel operation of two two-way communication radios (transceivers) where highest possible decoupling (isolation) is necessary.
- Integrated VSWR adjustment network for optimization of isolation in the frequency range of 380 – 410 MHz or 400 – 430 MHz. Via the adjustment network the effective VSWR of the antenna can be optimized and consequently the isolation between the ports of the combiner clearly improved.
- Isolation obtainable with normal antenna VSWR 1.5: 1 to 2.0: 1 on the Antenna port is 25 – 30 dB isolation between the TRX ports.
If a perfect 50 Ohm match on the Ant. port = VSWR 1.0: 1 is achieved, a higher isolation of > 50 dB can be obtained. - The adjustment of the VSWR adjustment network takes place via built-in variable capacitors.
- Max. TETRA transmitter power 2 x 10 W.
- Also usable as equal power divider for max. 20 W.
- Very small ripple over the total frequency range.
