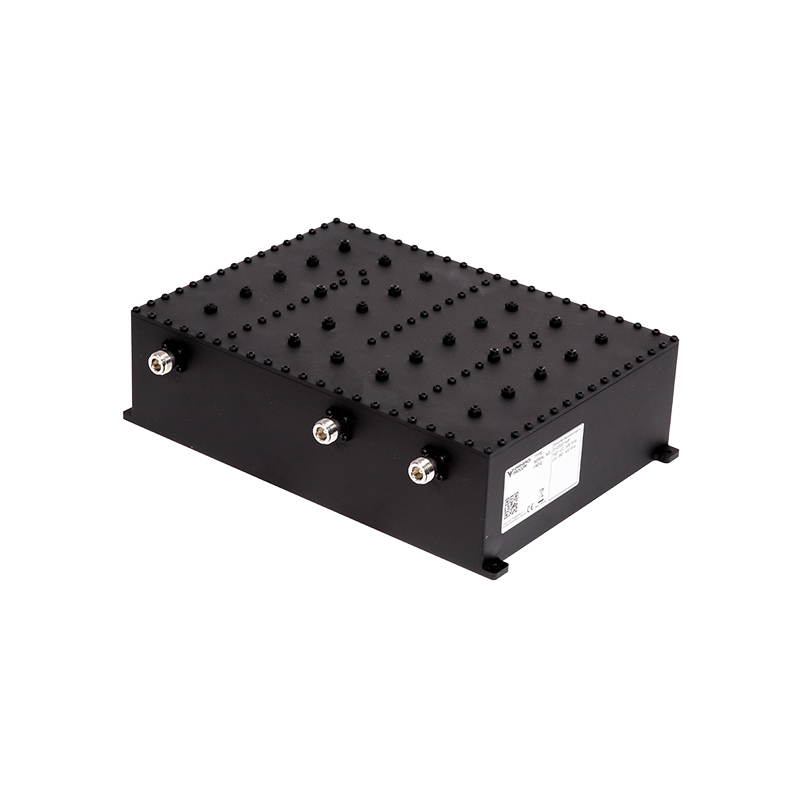

PRO-DPBP 380-400/410-430
Duplex Band-Pass Filter with 2 x 20 MHz bandwidth, used for duplexing the TETRA bands 380 – 400 MHz & 410 – 430 MHz
Description
- The Duplex Band-Pass Filter PRO-DPBP 380-400/410-430 is designed to combine a Public safety TETRA network 380 – 400 MHz and a Civil/Private TETRA network 410 – 430 MHz, into one common Antenna.
- The DPBP Filter benefit from using 2 x 6 ¼ λ cavitiy resonators build into a compact, strong aluminium housing.
- The filter i silver plated inside, which ensures a very low insertion loss.
- Built-in DC stop between all ports.
- The compact filter can be fitted into a 19” mounting tray, 3 HU in height, 300 mm in depth.
