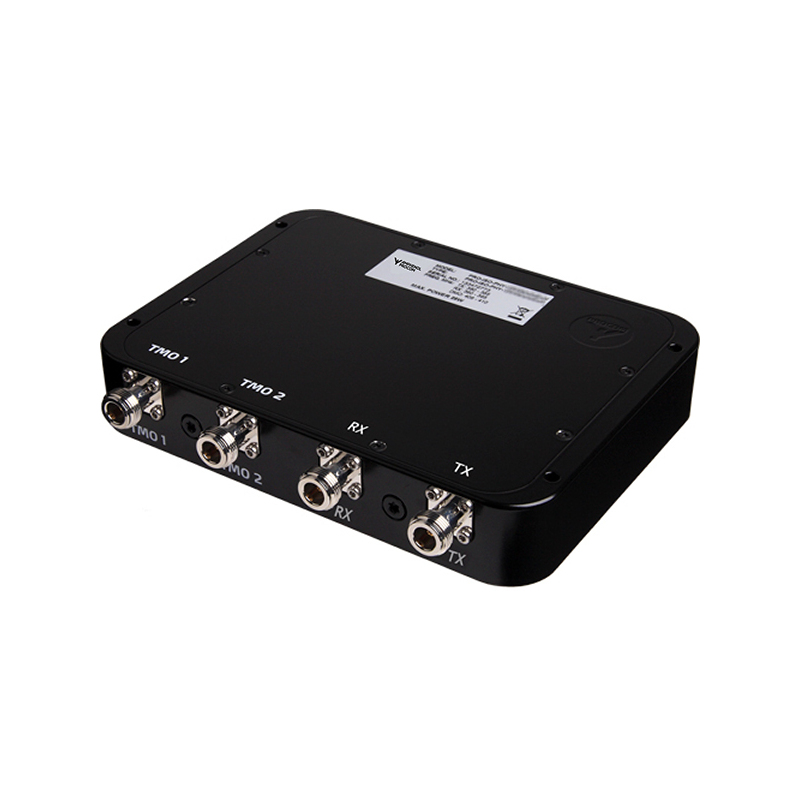

PRO-ISO-PHY-380-TX/RX-S2-N
Two TMO TETRA Mobile-Station
Description
- The PRO-ISO-PHY-380-TX/RX-S2-N combiner provides the possibillity of connecting two TMO TETRA radios with a high isolation of more than 60 dB between the radios.
- All PRO-ISO-PHY units are designed for single carrier signal per port and thus it is not recommended to add a multiple carrier signal on the input ports, as this could potentially create unwanted intermodulation products transmitted on the antenna port and reflected on the input ports.
- ETSI compliant connection of two digital radios.
- Includes LP filters to reduce second harmonic frequency from isolators.
- The PRO-ISO-PHY-380-TX/RX-S2-N combiner has external outputs for Tx and Rx.
- The PRO-ISO-PHY-380-TX/RX-S2-N has improved isolation between the ports – more than 60 dB – and lower insertion loss.
- The use of high-quality system components such as a high performance isolators provides high isolation and secure communication.
- The smallest and most compact design on the market.
- Suitable for both stationary and mobile use.
- Also available in tray for 19″ rack mounting.
- Vibration and shock tested in accordance with EN-60068
- .
- The Tx/Rx isolation will be dependent on the equipment connected to the unit.
- Tested in accordance with:
- Random test: EN 60068-2-64, test specification: EN 300 019-2-5 V3.0.0
- Shock test: EN 60068-2-27, test specification: EN 300 019-2-5 V3.0.0.
- Bump test: EN 60068-2-29, test specification: EN 300 019-2-5 V3.0.0
