PRO-PHY 380-520-3 dB-…

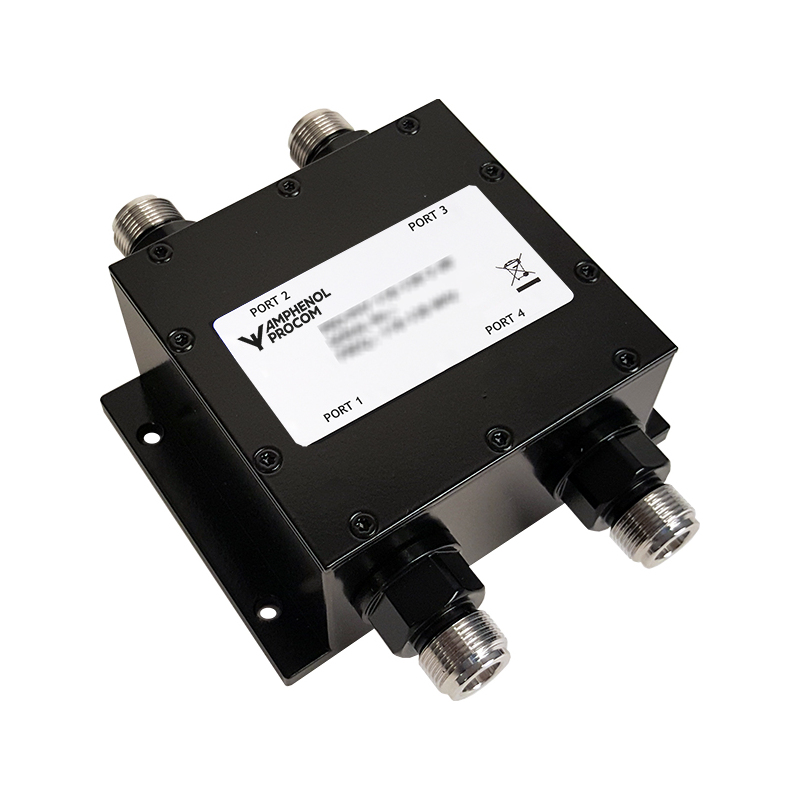

100 W 3 dB Coupler (90° Hybrid)
Description
- Hybrid Coupler with 3 dB coupling covering the 380 – 520 MHz band.
- Excellent high-power performance.
- If working as combiner max. input power 50 W per port into max. two ports of the four ports.
- If working as splitter 100 W into max. one port.
- Very low insertion loss over the entire frequency range.
- Available with N(f), 4.3/10(f) or 7/16-DIN(f) connectors.
- 3 dB 90° Hybrid Couplers also known as quadrature hybrids are a passive four port device that can be used in many different modes depending on the application. It can be used as a splitter, combiner or injection of a signal into a signal path.
