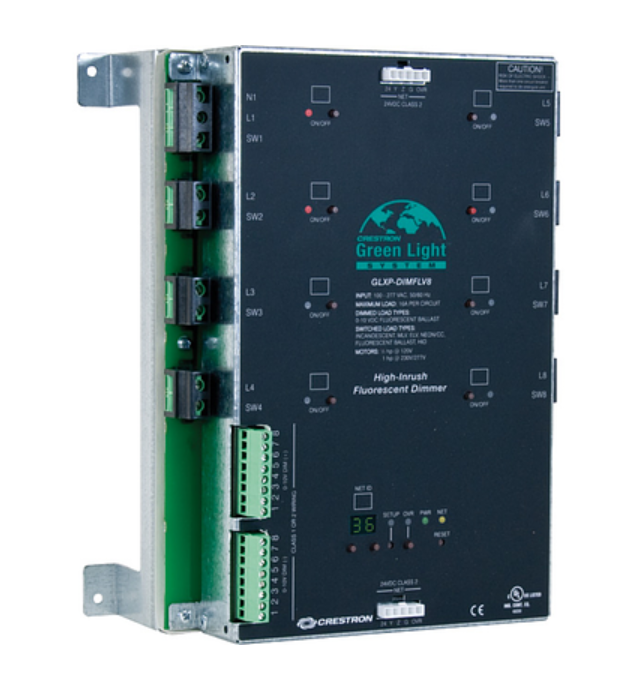

GLXP-DIMFLV8-LP
The GLXP‑DIMFLV8‑LP is a Crestron Green Light® switching module that features 8 channels of 0-10 V dimming control. This module is part of a complete Crestron® engineered GLPS Green Light switching panel.
The GLXP‑DIMFLV8‑LP is a Crestron Green Light® switching module that features 8 channels of 0-10 V dimming control. This module is part of a complete Crestron® engineered GLPS Green Light switching panel.
For more information on Crestron Green Light commercial lighting products, please contact Crestron Sales Support Services.
Override Input
An override input is provided to allow an external contact closure to momentarily override the control system program and set each channel output to its override preset state. States can be set and saved locally from the front panel or remotely via software.
Cresnet® Communications
The GLXP‑DIMFLV8‑LP communicates with a Crestron control system using the Cresnet control network. A pair of Cresnet ports are provided on the GLXP‑DIMFLV8‑LP to allow easy daisy‑chaining of several Crestron devices.
Key Features
- 8 channels of 0‑10 V dimming control
- Compatible with lighting and motor loads
- Support for 100‑277 V applications
- 16 A load rating per channel
- Arc‑less switching
- Positive air gap at each output
- Phase‑independent channels
- Cresnet® communications
- Redundant power capability
- Local controls for testing and verification
- Local and remote override capability
- Non‑volatile power failure memory
- GLEX cabinet installation
- CEC Title 24 2013 Compliant
