GLXP-HSW12-LP

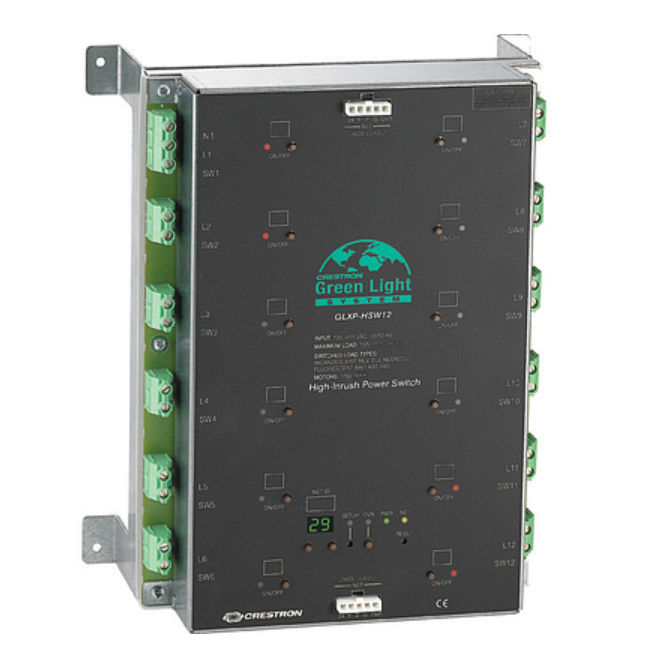

The Crestron® GLXP‑HSW12‑LP is a Crestron Green Light® switching module which features 12 independent channels of high‑inrush power switching with rugged, high‑current latching relays. Each channel is rated to control a 16 A lighting load or 1 HP motor.
The Crestron® GLXP‑HSW12‑LP is a Crestron Green Light® switching module which features 12 independent channels of high‑inrush power switching with rugged, high‑current latching relays. Each channel is rated to control a 16 A lighting load or 1 HP motor.
Override Input
Send an override signal from the control system to set all output channels to their preset override level. Override mode can also be triggered from the front-panel of the GLXP‑HSW12‑LP. Override levels can be adjusted and saved using the front-panel controls or via software.
Cresnet® Communications
The GLXP‑HSW12‑LP communicates with a Crestron control system using the Cresnet control network. A pair of Cresnet ports are provided on the GLXP‑HSW12‑LP to allow easy daisy‑chaining of several Crestron devices.
Key Features
- 12 channels of high‑inrush power switching
- Rugged, high-current latching relays
- Arc-less switching
- Supports 100–277 VAC applications
- 16 A, 1 HP load rating per channel
- Phase-independent channels
- Cresnet® communications
- Redundant power capability—module powered via line or Cresnet
- Front-panel controls for testing and verification
- Local and remote override capability
- Low-profile design
- Non-volatile power failure memory
- Mounts in a GLEX Series lighting enclosure
