GLXP-SW16-LP

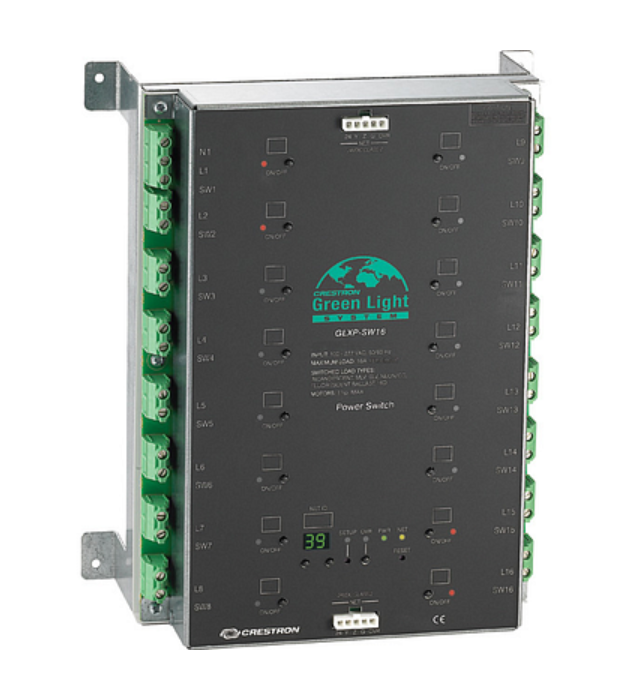

The Crestron® GLXP‑SW16‑LP is a Crestron Green Light® switching module which features 16 independent channels of power switching with mechanically‑latching relays. Each channel is rated to control a 16 A lighting load or 1 HP motor.
The Crestron® GLXP‑SW16‑LP is a Crestron Green Light® switching module which features 16 independent channels of power switching with mechanically‑latching relays. Each channel is rated to control a 16 A lighting load or 1 HP motor.
Override Input
Send an override signal from the control system to set all output channels to their preset override level. Override mode can also be triggered from the front-panel of the GLXP‑SW16‑LP. Override levels can be adjusted and saved using the front-panel controls or via software.
Cresnet® Communications
The GLXP‑SW16‑LP communicates with a Crestron control system using the Cresnet control network. A pair of Cresnet ports are provided on the GLXP‑SW16‑LP to allow easy daisy‑chaining of several Crestron devices.
Key Features
- 16 channels of power switching
- Mechanically‑latching relays
- Positive air gap at each output
- Supports 100–277 VAC applications
- 16 A, 1 HP load rating per channel
- Phase-independent channels
- Cresnet® communications
- Redundant power capability—module powered via line or Cresnet
- Front-panel controls for testing and verification
- Local and remote override capability
- Low-profile design
- Non-volatile power failure memory
- Mounts in a GLEX Series lighting enclosure
