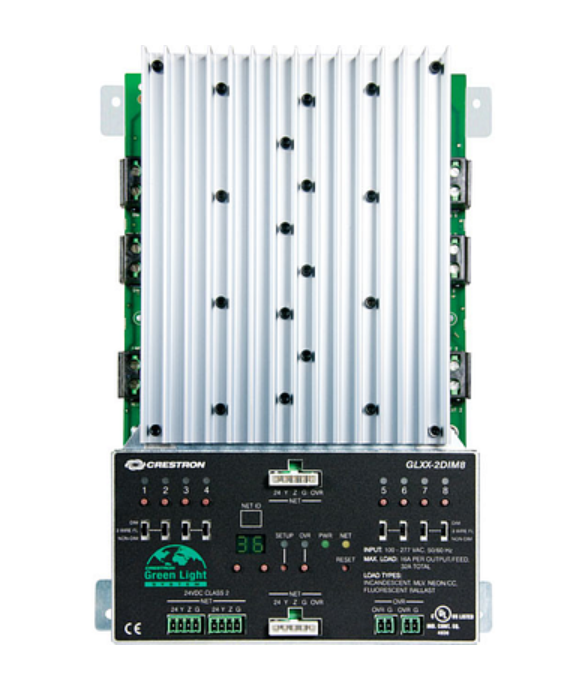

GLXX-2DIM8
The GLXX‑2DIM8 is a Crestron Green Light Express® dimming module that features eight channels of incandescent, magnetic low‑voltage, electronic low‑voltage (forward‑phase or leading edge compatible transformers only), 2‑wire fluorescent ballast, and LED dimming. It also offers four channels of 3‑wire fluorescent ballast dimming.
Override Input
Send an override signal from the control system to set all output channels to their preset override level. Override mode can also be triggered from the front‑panel of the GLXX‑2DIM8. Override levels can be adjusted and saved using the front‑panel controls or via software.
Cresnet® Communications
The GLXX‑2DIM8 communicates with a Crestron® control system using the Cresnet control network. A pair of Cresnet ports are provided on the GLXX‑2DIM8 to allow easy daisy‑chaining of several Crestron devices.
Key Features
- 8 channels of incandescent, MLV, ELV, 2‑wire fluorescent, LED dimming or 4 channels of 3‑wire fluorescent ballast dimming
- Phase‑Synchronous detection eliminates lamp flicker
- Selectable dim, 3‑wire fluorescent, and non‑dim modes
- Supports 100 to 277 V applications
- 16 A load rating per channel
- Short circuit and overload protection
- Positive air gap at each output
- Phase‑independent channels
- Cresnet® communications for connection to a Crestron® control system
- Redundant power capability ‑ module powered via line or Cresnet
- Local controls for testing and verification
- Local and remote override capability
- Non‑volatile power failure memory
