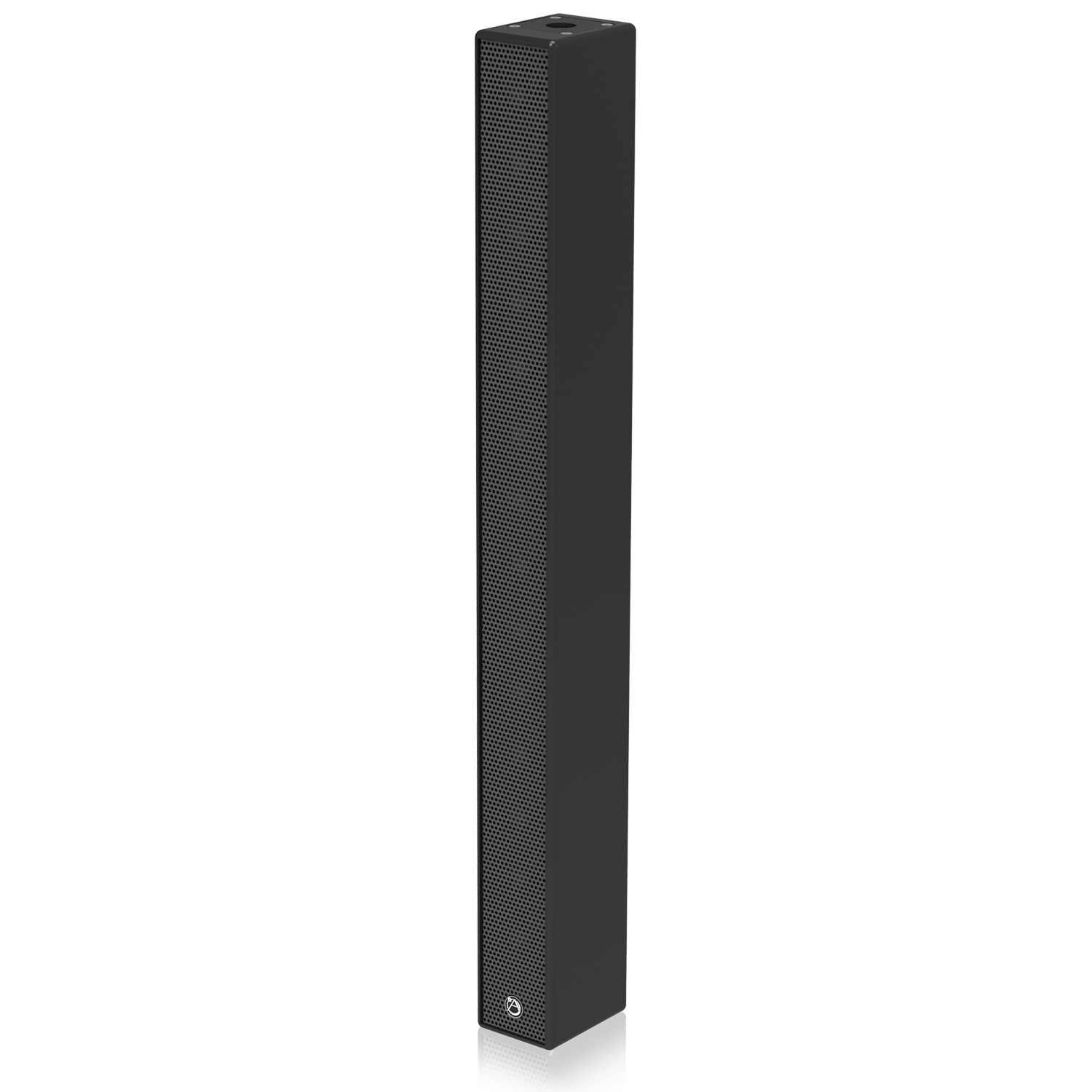

EL1503C
The AtlasIED A-Line Eli Line array speaker system is a highly ineligible, high efficiency speaker system that is ideally suited for use in speech and music reproduction applications for small venues such as houses of worship, small theaters, and schools. The system consists of two parts: the EL1503C, which includes fifteen proprietary 3”drivers, and the ELW110, which has a single 10” low frequency driver. Both models utilize an optimally designed birch constructed enclosure. The ELW110AC houses an integrated Bang & Olufsen ICEpower class D amplifier that includes onboard DSP. The ELW110AC is designed to provide power to the EL110XC and the two EL1503C arrays. The trim line, two cabinet design allows for sleek, clean looking set ups with minimal sightline interference. The ELI kit includes everything needed to set up the system, including the power cable, speaker cables and pole.
- Fifteen 3" Proprietary Full Range Speakers
- Pattern Control to 300Hz
- EL1503C is Pole Mount on Top and Bottom for Stacking
- Birch Sealed Cabinet Construction
- Finished in Heavy Duty Black Duracoat™
- Houses of Worship
- Small Music Venues
- Small Auditoriums
- Lecture Halls
- Meeting Rooms
| RMS Power | 200 Watts |
| Impedance | 8Ω per Cabinet |
| Sensitivity | 93dB |
| Max SPL | 116dB |
| Frequency Response | 150Hz - 16kHz |
| Dispersion | 135° H & 40° V |
| Drivers | Fifteen (15) 3" |
| Connectors | 2x NL4 |
| Dimensions (HxWxD) | 49.6" x 4.8" x 6.4" (126.05cm x 12.2cm x 16.2cm) |
| Weight | 38.36 lbs (17.4kg) |
