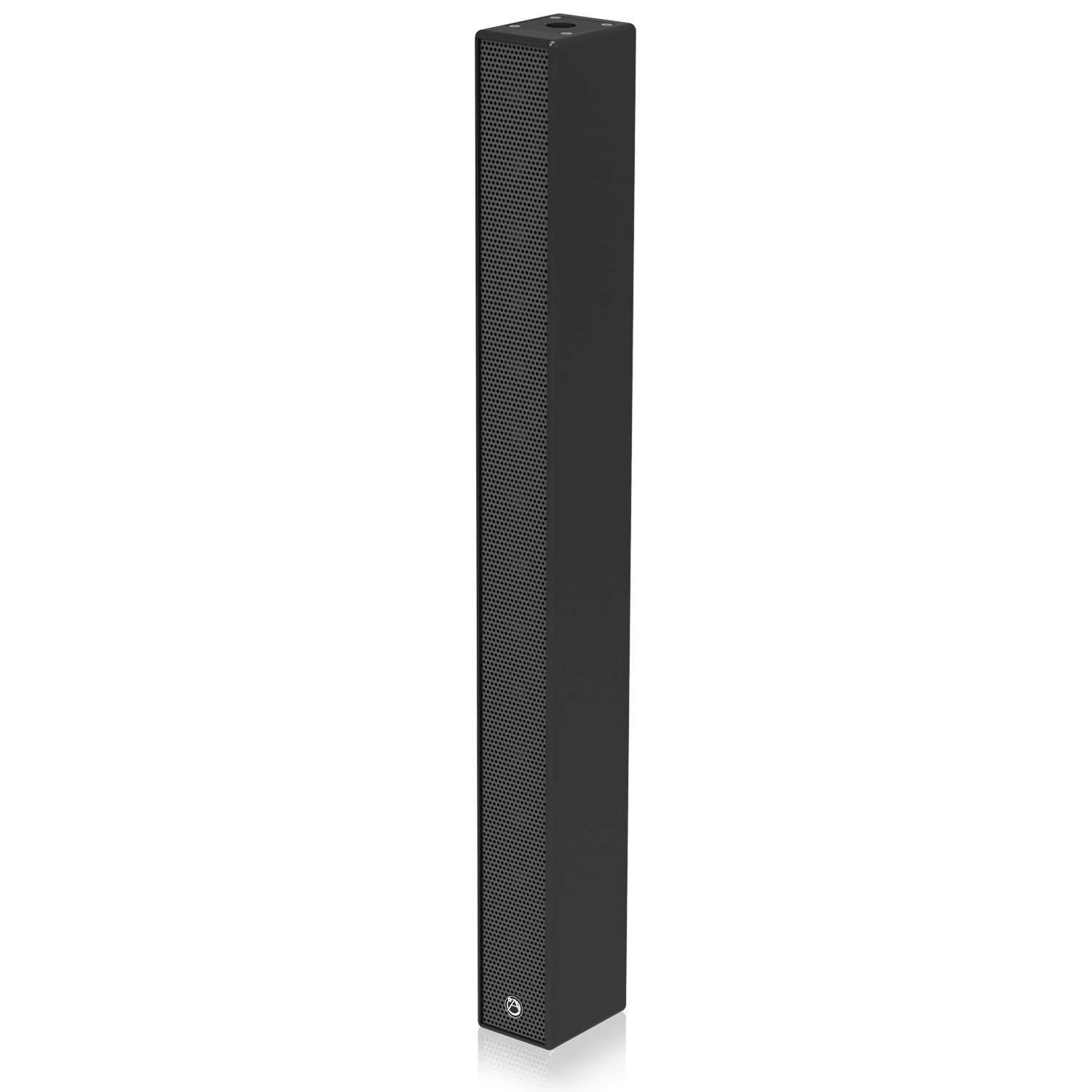

EL1503IC
The AtlasIED A-Line Eli Line array speaker system is a highly ineligible, high efficiency speaker system that is ideally suited for use in speech and music reproduction applications for small venues such as houses of worship, small theaters, and schools. The system consists of two parts: the EL1503IC-B, which includes fifteen proprietary 3”drivers, and the ELW110, which has a single 10” low frequency driver. Both models utilize an optimally designed birch constructed enclosure. The ELW110AC houses an integrated Bang & Olufsen ICEpower class D amplifier that includes onboard DSP. The ELW110AC is designed to provide power to the EL110XC and the two EL1503IC arrays. The trim line, two cabinet design allows for sleek, clean looking set ups with minimal sightline interference.
- Fifteen 3" Proprietary Full Range Speakers
- Pattern Control to 300Hz
- EL1503IC is Fixed Install (Bracket for sale separately)
- Birch Sealed Cabinet Construction
- Finished in Heavy Duty Black Duracoat™
- Houses of Worship
- Small Music Venues
- Small Auditoriums
- Lecture Halls
- Meeting Rooms
| RMS Power | 200W |
| Impedance | 8Ω per Cabinet |
| Sensitivity | 93dB |
| Max SPL | 116dB |
| Frequency Response | 150Hz - 16kHz |
| Dispersion | 135° H & 40° V |
| Drivers | Fifteen (15) 3" |
| Connecdtor | 1x Barrier Terminal |
| Dimensions (HxWxD) | 49.6" x 4.8" x 6.4" (126.05cm x 12.2cm x 16.2cm) |
| Weight | 38.36 lbs (17.4kg) |
