LT70
General Purpose Transformer 70.7V
Description
DESCRIPTION

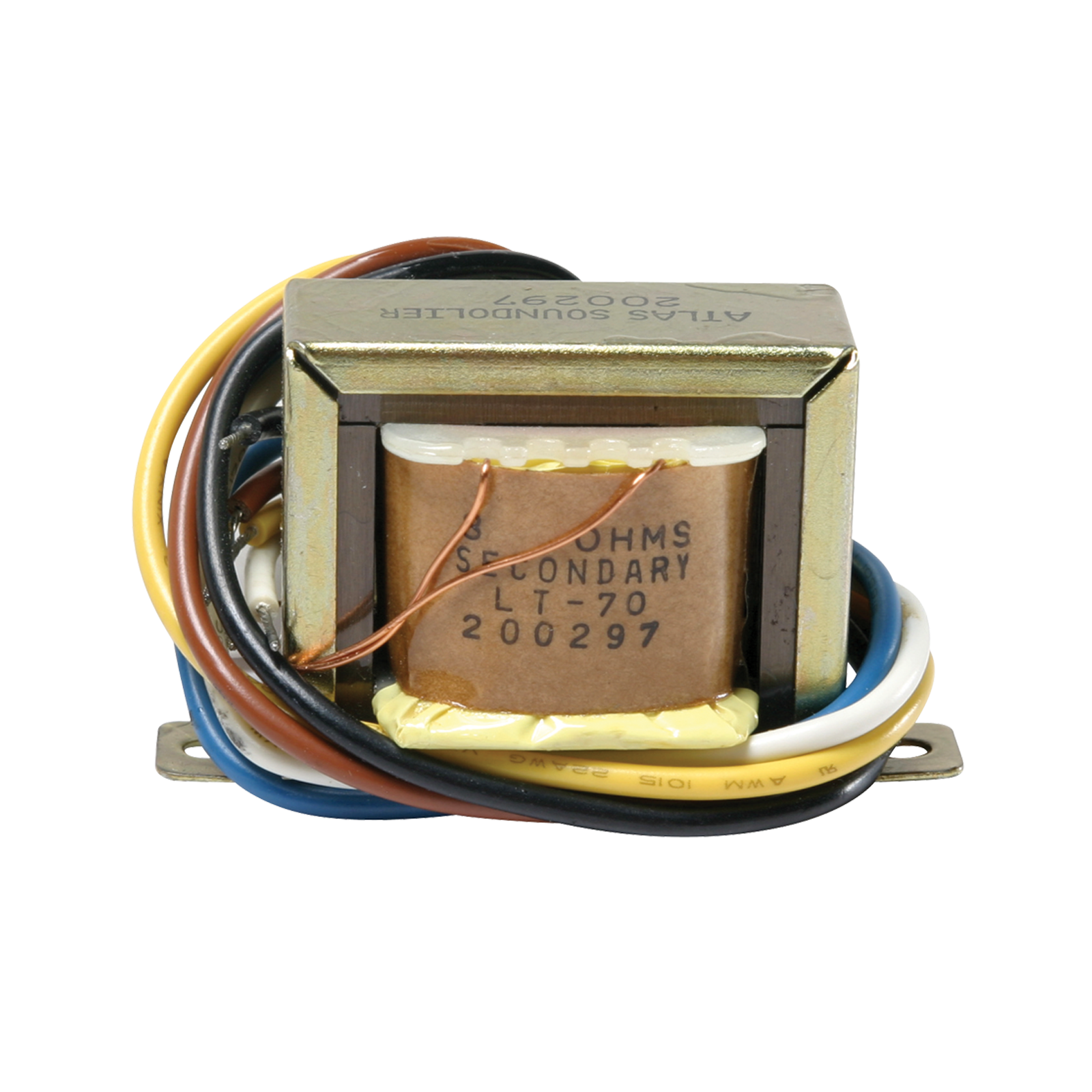

The LT70 General purpose transformer provides economical matching of speakers for most distributed sound applications.
The insertion loss does not exceed 1.5dB and frequency response is +1.5dB from 100Hz - 10kHz.
Primary taps are .5, 1, 2 and 5 watts. Secondary impedance is 8 ohms. Model LT-70 is designed for use with 70.7-volt lines.
Features
- 70.7V Line Matching Transformer
- Compact Footprint
- Frequency Response 100Hz - 10kHz
SPECIFICATIONS
| Frequency Response | 100Hz - 10KHz |
| Power Taps | .5, 1, 2 & 5 |
| Power Rating | 5W |
| Primary Voltage | 70.7 |
| Height | 1 3/8" (3.4925 cm) |
| Width | 1 3/4" (4.36626 cm) |
| Depth | 3/4" (1.82626 cm) |
| Shipping Weight | 0.50 lbs (0.23 kgs) |
| Warranty Period | 60 months from date of purchase |
