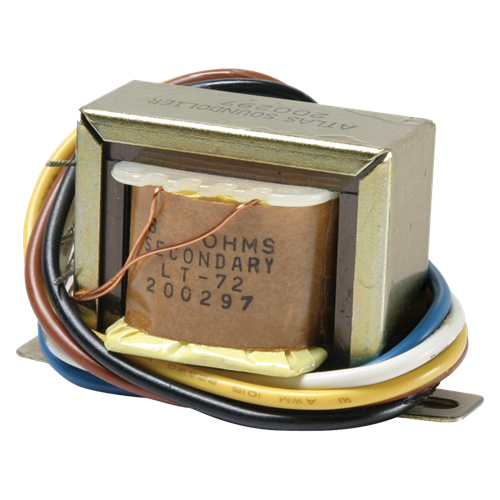

LT72
General Purpose Transformer 25/70.7V
Description
DESCRIPTION
The LT72 General purpose transformer provides economical matching of speakers for most distributed sound applications.
The insertion loss does not exceed 1.5dB and frequency response is +1.5dB from 100Hz - 10kHz. Primary taps are .5, 1, 2 and 5 watts. Secondary impedance is 8 ohms. Model LT-72 is designed for use with 70.7 and 25V volt lines.
Features
- 70.7V / 25V Line Matching Transformer
- Compact Footprint
- Frequency Response 100Hz - 10kHz
SPECIFICATIONS
| Frequency Response | 100Hz - 10KHz |
| Power Taps | .5, 1, 2 & 4 |
| Power Rating | 4W |
| Primary Voltage | 25V/70V |
| Height | 1 3/8" (3.4925 cm) |
| Width | 1 3/4" (4.36626 cm) |
| Depth | 3/4" (1.82626 cm) |
| Shipping Weight | 0.50 lbs (0.23 kgs) |
| Warranty Period | 60 months from date of purchase |
