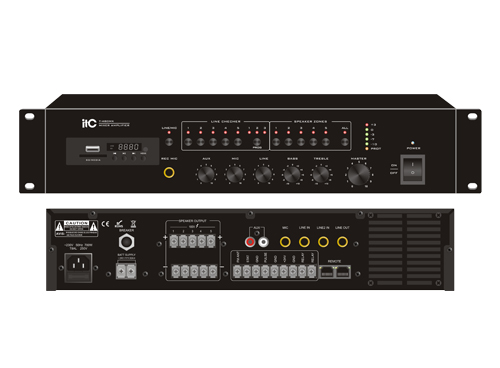

T-480MX
Specification:
|
Model |
T-480MX |
|
Rated power |
500W |
|
Speaker output |
100V |
|
Input sensitivity/impedance |
MIC 1,: 5mV/600Ω, unbalanced 6.3 connector; AUX 1, 2: 350mV/10KΩ, unbalanced RCA input |
|
Output sensitivity/impedance |
MIX OUT: 1000mV/470Ω, unbalanced RCA input |
|
Tone |
Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz |
|
Frequency response |
50Hz~16KHz( +1dB, -3dB) |
|
SNR |
MIC 1,: 66dB, AUX 1, 2: 80dB |
|
THD |
＜0.5% at 1KHz, 1/3 rated power |
|
Mute function |
Built-in emergency message>LINE alarm 2 input>REMOTE>MIC1>LINE1/AUX/MP3 |
|
Channel crosstalk attenuation |
≤50dB |
|
Audio format |
MP3 |
|
Maximum capacity |
32G USB |
|
Battery |
45-60 A/h |
|
Charging current |
≤5 A |
|
Zone quantity |
5 |
|
Heat dissipation |
When the temperature reaches 55℃, the fan will automatically accelerate |
|
Protection |
High temperature, over load, short circuit |
|
Power supply |
~110V/60Hz or ~230V/50Hz /DC24V |
|
Power consumption |
700W |
|
Weight |
8.5kg |
|
Dimension |
484x358x88mm |
|
Material |
Panel: aluminum composite panel, steel plate, black
|
