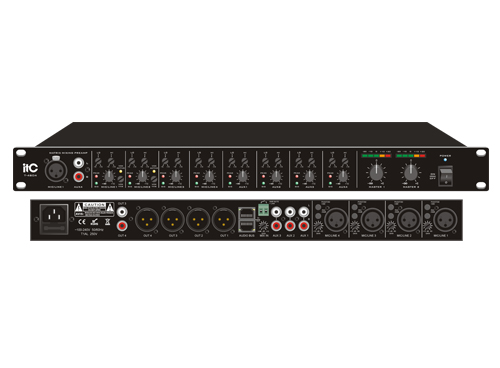

T-4S04
Stereo Mixer Pre- Amplifier (8 Inputs & 4 Outputs)
Description
Specifications:
|
Model |
T-4S04 |
|
Input Sensitivity/Impedance |
|
|
1-4MIC/ Line |
±2.5mV/5KΩ balanced, ±250mV/5KΩ balanced |
|
1-4AUX RCA In |
400mV/5KΩ unbalanced |
|
Output Level/Impedance |
|
|
Master 1, 2,3,4 |
1V/600Ω balance (MAX:±7.75V) |
|
AUX |
1V/10KΩ unbalanced (MAX:7.75V) |
|
Tone |
Bass: ±15dB at 100Hz, Treble: ±15dB at 10KHz |
|
Low Cut |
200Hz / 12dB per octave slope |
|
Frequency Response |
|
|
Less Than |
|
|
S/N Ratio |
-1dB (20Hz~20KHz) |
|
MIC |
|
|
Line |
> 60dB |
|
THD |
> 75dB |
|
MIC |
|
|
Line |
< 0.05% |
|
Cross-talk |
> 0.03% |
|
MIC |
> 60dB |
|
Line |
> 75dB |
|
Power Consumption Power |
20W |
|
Power Supply |
~110V-230V 50/60Hz |
|
Dimensions |
484 x 209 x 44mm
|
