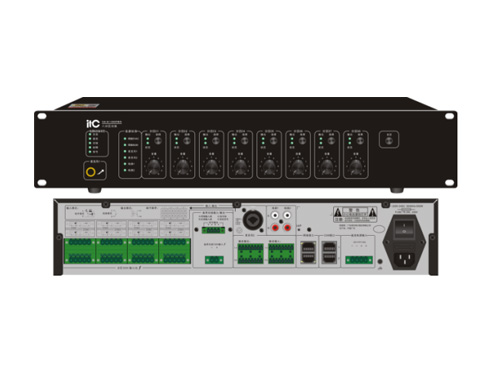

VA-6100P85

AC power

Voltage

AC 220V±20%  50-60Hz

Maximum current

3A

Fuse

250V/3.15A，slow type

DC power

Voltage

DC24VC, 18-31V adaptive

Maximum current

30A

Maximum Power consumption

600W

Performance Index

Number of output partitions

8

Output voltage

100V optional

Output type

Bridge-tied output without transformer boost

Output power

500W (maximum output of a single partition)

Distortion

<1% (rated output power), 1KHz

Frequency response

80Hz-16KHz

SNR

>70dB

Maximum output power

500W

Override type

3-wire and 4-wire

4-wire override output voltage

24V

Power amplifier status detection time

＜ 0.5S

Partition detection status

Short circuit, open circuit, short circuit to ground

Partition detection time

＜ 0.5S

Contact Output

8 channels programmable relay output

Short Circuit, No voltage

8 channels programmable trigger input

Short-circuit input, short-circuit input with detection, voltage input

Short circuit mode

3.3V voltage, short-contact trigger, no linkage line monitoring function

Short circuit mode  with detection

3.3V voltage, short-contact trigger, support linkage line fault alarm

Voltage mode

18-31V voltage input, voltage trigger, support linkage line fault alarm

Cooling mode

Air-Cooled

Protection mode

Delay/Overheat/Short Circuit/Over Load
