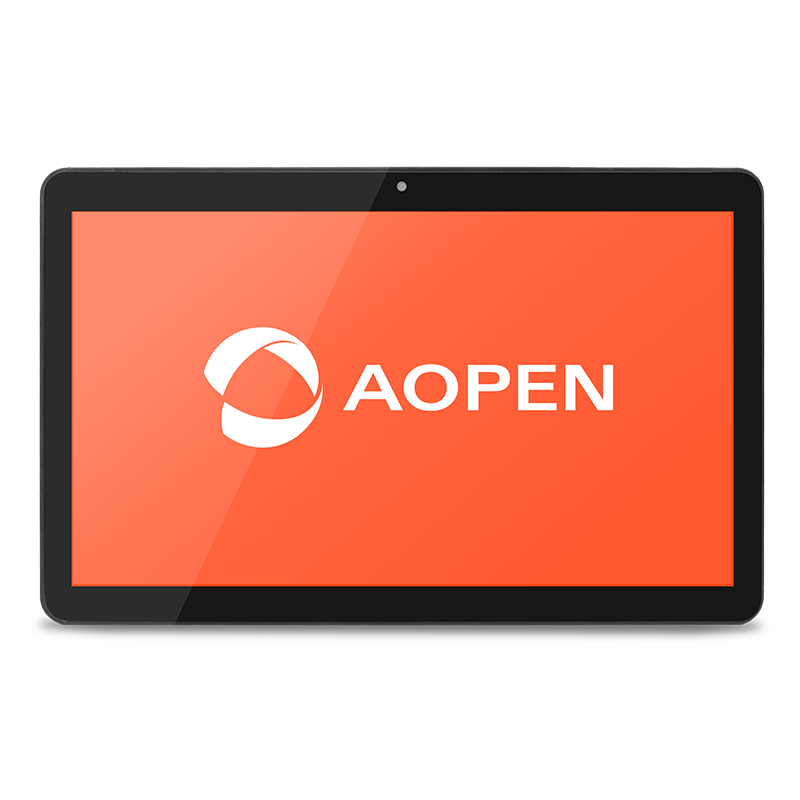

cTILE 22 Gen3
A Reliable & Robust Commercial Grade Chrome AIO PC
Description
Housing Material
Metal
Dimensions (W x H x D)
W x H x D (mm): 525.4*332*56.7mm
W x H x D (inch): 20.7"*13.1"*2.23"
Packing:
W x H x D (mm): 614*490*178mm
W x H x D (inch): 24.17"*19.29"*7.01"
W x H x D (inch): 20.7"*13.1"*2.23"
Packing:
W x H x D (mm): 614*490*178mm
W x H x D (inch): 24.17"*19.29"*7.01"
Weight
N.W: 8.54Kg / G.W: 9.73Kg
CPU
Intel® Celeron
Chipset
NA
Memory
Channel : Dual Channel
Type: DDR4
Data rate: 3200
Capacity: 4G
Type: DDR4
Data rate: 3200
Capacity: 4G
Graphics
Intel HD graphic, integrated on CPU
Front Panel I/O
Resolution: 21.5" 1920x1080 (16:9)
Maximum Brightness: 250 nits
Panel Type: VA
Viewing angle: 178°/178°
Response time: 22ms
Contrast Ratio: 1000:1
Touch: PCT (10 points)
Maximum Brightness: 250 nits
Panel Type: VA
Viewing angle: 178°/178°
Response time: 22ms
Contrast Ratio: 1000:1
Touch: PCT (10 points)
Expansion Slot
NA
Front Camera
Camera: 2M pixel
Audio
2W speaker x 2
LAN
Giga LAN x 1, 10/100/1000 Mbps
Storage
64 GB
Security
Google TPM, Kensington lock
Storage Bay
64 GB
Side Panel I/O
Power Button x1 (Hidden type)
DC Jack x1
HDMI Out Port x1 (Option)
USB 3.0 Port x2
Audio Set-
Line-out/Mic-in: Audio Combo Jack x 1
others:
Recovery buttom x 1,
External Power Switch x 1,
Type C x 1
DC Jack x1
HDMI Out Port x1 (Option)
USB 3.0 Port x2
Audio Set-
Line-out/Mic-in: Audio Combo Jack x 1
others:
Recovery buttom x 1,
External Power Switch x 1,
Type C x 1
Watchdog Timer
NA
IP Grade
Front IP65 / Rear IPX2
Adapter
90W 19V 4.74A x 1
Input Voltage
AC 110 ~ 240V
Warranty
3 years
MTBF
50000 hours
Operating Temperature
0 ~ 40ºC (32 ~ 104ºF)
Storage Temperature
-20 ~ 60ºC (-4 ~ 140ºF)
Relative Humidity
90% RH max
