DE3129
Intel® Processor N-series N100, comes with improved performance, higher graphics capability. Fanless desing for various applications
Description
CPU
Socket: CPU on board
Type: Intel® Processor N-series N100
TDP=6.5W
Type: Intel® Processor N-series N100
TDP=6.5W
BIOS
-
Chipset
-
AiCU
-
Memory
Channel: Single Channel
Type: DDR5 SO-DIMM x 1
Data rate: 4800
Max Memory: 16G
Type: DDR5 SO-DIMM x 1
Data rate: 4800
Max Memory: 16G
Graphics
Intel UHD Graphics Gen12
Expansion
M.2 slot x1, 2280(key M for SATA/PCIe SSD)
M.2 slot x1, 2230(key E for wifi)
M.2 slot x1, 2230(key E for wifi)
Audio
Type: Realtek HD Audio ALC897
Channel: Stereo
Channel: Stereo
LAN
Intel 2.5GLAN x 1 (i226V)
100/1000/2500 Mbps
100/1000/2500 Mbps
Storage
M.2 SSD x 1

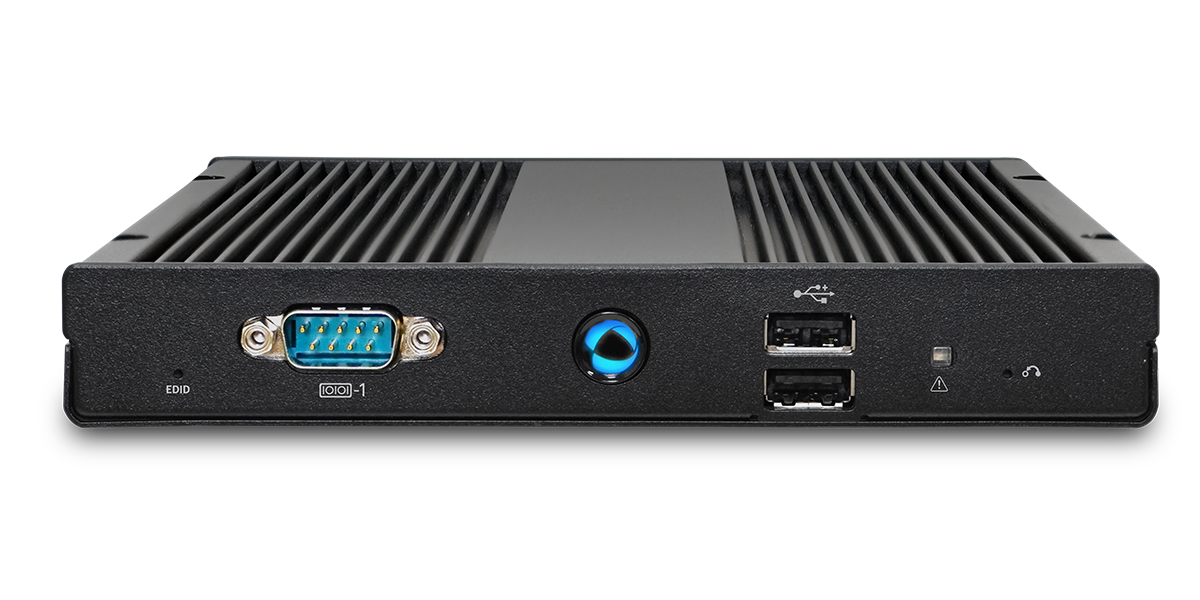

Front Panel I/O
USB 2.0 Port x2
Others:
Power Button x 1,
System error LED x 1,
BIOS recovery button x 1
RS232 x 1
EDID Emulator x 1
Others:
Power Button x 1,
System error LED x 1,
BIOS recovery button x 1
RS232 x 1
EDID Emulator x 1
Rear Panel I/O
DC Jack: 12/24V, 5525 x 1
HDMI 2.0 Port x 2
USB 2.0 Port x 2
USB3.2 Port x 2
RJ45 LAN Jack x 1
Antenna Holes x 2
Other:
Combo audio jack x 1
Extend power SW x 1
HDMI 2.0 Port x 2
USB 2.0 Port x 2
USB3.2 Port x 2
RJ45 LAN Jack x 1
Antenna Holes x 2
Other:
Combo audio jack x 1
Extend power SW x 1
CPU Thermal Module
AOPEN Thermal Module
Dimensions (W x H x D)
166(W) x 25(H) x 158(D) mm
6.54(W) x 0.98(H) x 6.22(D) inch
6.54(W) x 0.98(H) x 6.22(D) inch
Volume
0.65L
Weight
0.8 kgs / 1.76 lbs
WatchDog Timer
1 ~ 255 SEC./ min
Adapter
40W (19V, 2.1A) AC Adapter
ADP-40KD BBZ
P/N: 90.DEF57.0010
ADP-40KD BBZ
P/N: 90.DEF57.0010
Input Voltage
AC 100 ~ 240V
Warranty
2 years
MTBF
50,000hrs
Operating Temperature
-20 ~40ºC (-4 ~ 104ºF)
Storage Temperature
-30 ~ 60ºC (-22 ~ 140ºF)
Relative Humidity
90% RH (35ºC non-Condensing)
Support
Windows
Linux
Linux
