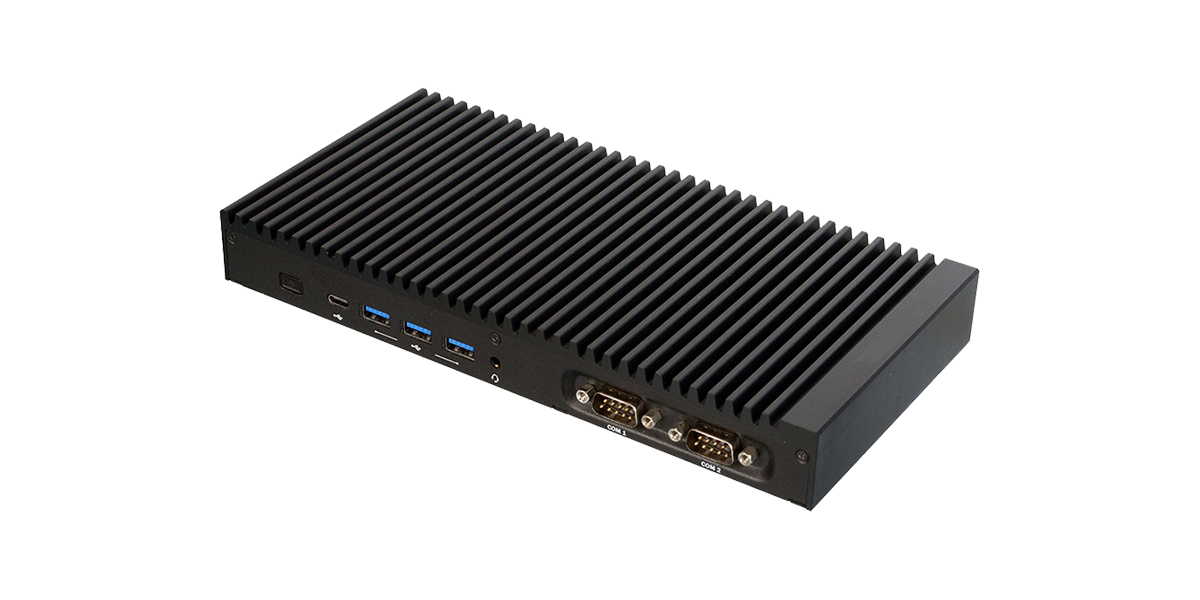

DEM5135
Cost-Effective, Slim & High-Performance IPC
Description
CPU
Socket: CPU on board
Type:
Intel® 13th / 13th Refresh Core i Processor
Type:
Intel® 13th / 13th Refresh Core i Processor
Memory
Channel: Dual Channel
Type: DDR4 SO-DIMM x 2
Data rate: 3200
Max Memory: 64G
Type: DDR4 SO-DIMM x 2
Data rate: 3200
Max Memory: 64G
Graphics
Intel Iris Xe Graphics
Expansion
M.2 slot x1, 2280(key M for PCIe /SATA SSD)
M.2 slot x1, 2230(key E for wifi)
M.2 slot x1, 2230(key E for wifi)
Audio
Type: Realtek HD Audio
Channel: Stereo
Channel: Stereo
LAN
Intel 2.5GLAN x 2 (i226V)
100/1000/2500 Mbps
100/1000/2500 Mbps
Storage
2.5" SATA HDD x 1
M.2 SSD x 1
M.2 SSD x 1
Front Panel I/O
USB 3.2 Port x 3
Others:
Power Button x 1,
DB9 RS232/422/484 x 2,
USB Type C x 1 w/DP,
Combo audio jack x 1
Others:
Power Button x 1,
DB9 RS232/422/484 x 2,
USB Type C x 1 w/DP,
Combo audio jack x 1
Rear Panel I/O
DC Jack 19V, 5525 x 1
HDMI 2.0 Port HDMI2.0 x 2
RJ45 LAN Jack x 2
DisplayPort x 1
Audio Set(Line-Out) Combo x 1
Antenna Holes x 2
COM Port x 2 (DB9 RS232)
HDMI 2.0 Port HDMI2.0 x 2
RJ45 LAN Jack x 2
DisplayPort x 1
Audio Set(Line-Out) Combo x 1
Antenna Holes x 2
COM Port x 2 (DB9 RS232)
CPU Thermal Module
AOPEN Fanless design
Dimensions (W x H x D)
242(W) x 30H) x 120(D) mm
9.53(W) x 1.18(H) x 4.72(L) inch
9.53(W) x 1.18(H) x 4.72(L) inch
Volume
0.87L
Weight
2.21kgs / 4.86lbs
Adapter
90W (19V, 4.74A) AC Adapter
Input Voltage
AC 100 ~ 240V
MTBF
50,000hrs
Operating Temperature
0 ~50ºC (32 ~ 122ºF)
Storage Temperature
-30 ~ 60ºC (-22 ~ 140ºF)
Relative Humidity
90% RH (45ºC non-Condensing)
Support
Windows
Linux
Linux
