DEN5128
Powered by 12th generation Intel® processor and UHD graphics
Description
CPU
Socket: CPU on board
Type: Intel 12th Gen Alder Lake-U/P ≦ 28W
Type: Intel 12th Gen Alder Lake-U/P ≦ 28W
Chipset
-
AiCU
-
Memory
Channel: Dual Channel
Type: DDR4 SO-DIMM x 2
Data rate: 3200
Max Memory: 64G
Type: DDR4 SO-DIMM x 2
Data rate: 3200
Max Memory: 64G
Graphics
Intel® UHD Graphics for 12th Gen Intel® Processors
Expansion
M.2 slot x 1, 2280(key M for PCIe/SATA SSD)
M.2 slot x 1, 2242(key B for SATA SSDG)
M.2 slot x1, 2230(key E for wifi)
M.2 slot x 1, 2242(key B for SATA SSDG)
M.2 slot x1, 2230(key E for wifi)
Audio
Type: Realtek HD Audio
Channel: Stereo
Channel: Stereo
LAN
Realtek 2.5G Ethernet RTL8125BG x1
100/1000/2500Mbps
100/1000/2500Mbps
Storage
M.2 SSD x 2

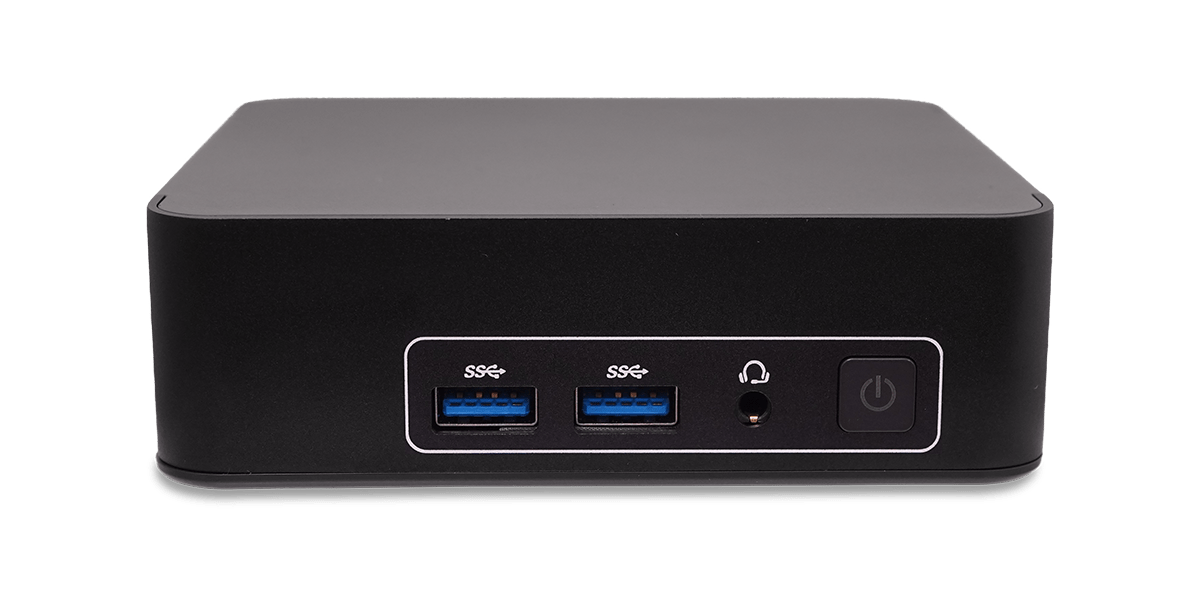

Front Panel I/O
USB 3.2 Port x 2
Others:
Power Button x 1,
COMBO Audio x 1
Others:
Power Button x 1,
COMBO Audio x 1
Rear Panel I/O
DC Jack 19V x 1 (5525)
HDMI 2.0 Port x 2
USB 2.0 Port x 1
USB 3.2 Port x 1
RJ45 LAN Jack x 1
Kensington Lock Hole x 1 (left side)
Others USB Type C w/DP x 2
HDMI 2.0 Port x 2
USB 2.0 Port x 1
USB 3.2 Port x 1
RJ45 LAN Jack x 1
Kensington Lock Hole x 1 (left side)
Others USB Type C w/DP x 2
CPU Thermal Module
AOpen Thermal Module
Dimensions (W x H x D)
117(W) x 35.8(H) x 111(D) mm
4.61(W) x 1.41(H) x 4.37(D) inch
4.61(W) x 1.41(H) x 4.37(D) inch
Volume
0.46L
Weight
1.1 kgs / 2,42 lbs
WatchDog Timer
-
Adapter
90W (19V, 4.74A) AC Adapter
Input Voltage
AC 100 ~ 240V
Warranty
2 years
MTBF
50,000hrs
Operating Temperature
0 ~40ºC (32 ~ 104ºF)
Storage Temperature
-20 ~ 60ºC (-4 ~ 140ºF)
Relative Humidity
90% RH (60ºC non-Condensing)
Support
Windows
