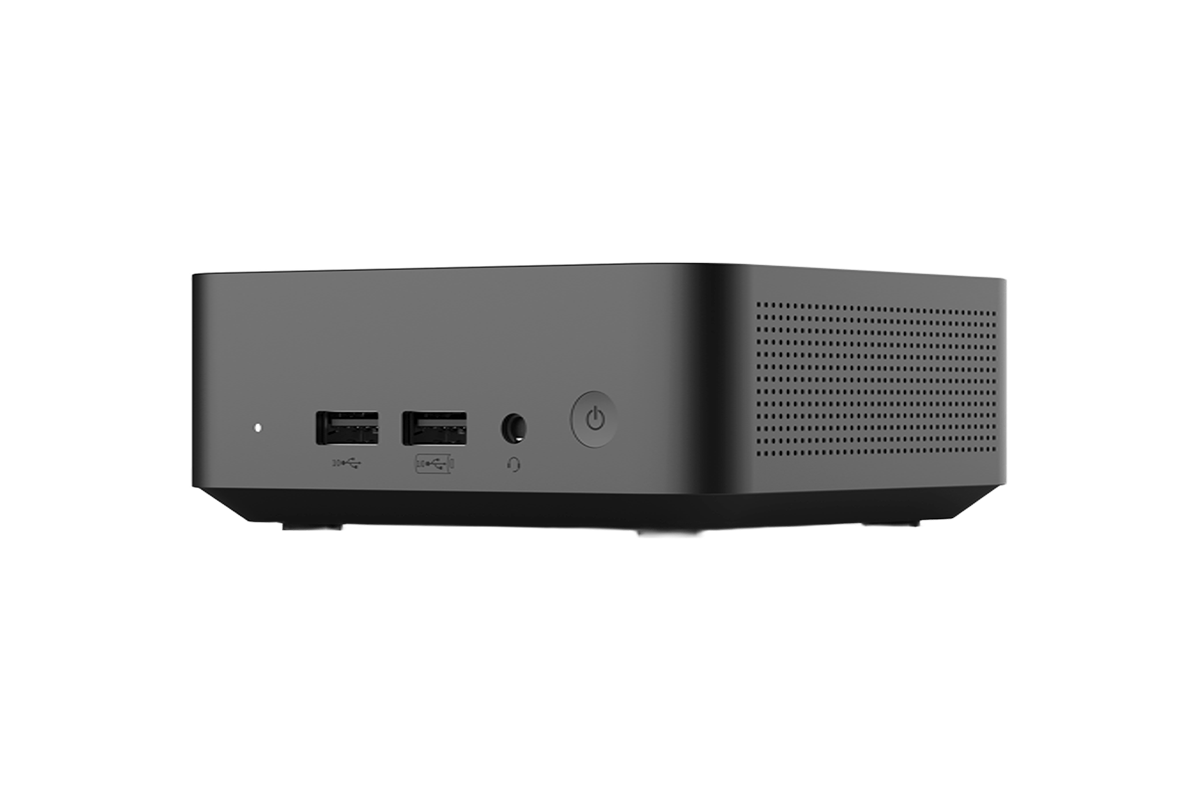

DEN5134
Mine Size | 4-Screen Output | 4K Content Playback
Description
CPU
Intel® 12th /13th /13 refresh Gen Core™ Processor, TDP<=45W
Memory
Channel: Dual Channel
Type: DDR4 SO-DOMM x2
Data rate: 3200 MHz
Max Memory: Max 64GB
Type: DDR4 SO-DOMM x2
Data rate: 3200 MHz
Max Memory: Max 64GB
Graphics
Intel® UHD Graphic
Expansion
M.2 2280 x1 (key M for NVMe SSD)
M.2 2242 x1 (key B for SATA SSD)
M.2 2230 x1 (key E for WiFi)
M.2 2242 x1 (key B for SATA SSD)
M.2 2230 x1 (key E for WiFi)
Audio
Realtek HD Audio Codec
LAN
Chip: Intel 2.5G LAN i226V
Speed: 100 / 1000 / 2500 Mbps
Speed: 100 / 1000 / 2500 Mbps
Front Panel I/O
USB 3.2 Port x2 (Gen2, Type A)
Others:
Combo Audio x1,
Power Button x1,
Reset SW x1
Others:
Combo Audio x1,
Power Button x1,
Reset SW x1
Rear Panel I/O
DC Input 19V x1 (with 19V/65W power adaptor)
HDMI 2.1 Port x2 (4096x2106@60Hz)
Type C x1(Rear I/O 1*DP+DP+Data(left side) + 1*TBT4(Right side)
USB 2.0 Port x1 (Type A)
USB 3.2 Port x1 (Gen2, Type A)
RJ45 LAN Jack x1 (2.5GbE)
HDMI 2.1 Port x2 (4096x2106@60Hz)
Type C x1(Rear I/O 1*DP+DP+Data(left side) + 1*TBT4(Right side)
USB 2.0 Port x1 (Type A)
USB 3.2 Port x1 (Gen2, Type A)
RJ45 LAN Jack x1 (2.5GbE)
Dimensions (W x H x D)
112 x 43 x 112 mm
4.41 x 1.69 x 4.41 inch
4.41 x 1.69 x 4.41 inch
Volume
0.54 L
Weight
Net Weight: 0.9 kgs / 1.98 lbs
Gross Weight: 1.1 kgs / 2.42 lbs
Gross Weight: 1.1 kgs / 2.42 lbs
Adapter
65W (19V, 3.42A) AC Adapter
Input Voltage
AC 100 ~ 240V
MTBF
50,000 hrs
Operating Temperature
0 °C ~ 40 °C (32 °F ~ 104 °F)
Storage Temperature
-20 °C ~ 60 °C (-4 °F ~ 140 °F)
Relative Humidity
90% RH (60 °C Non-Condensing)
TPM
Intel® PTT TPM2.0
