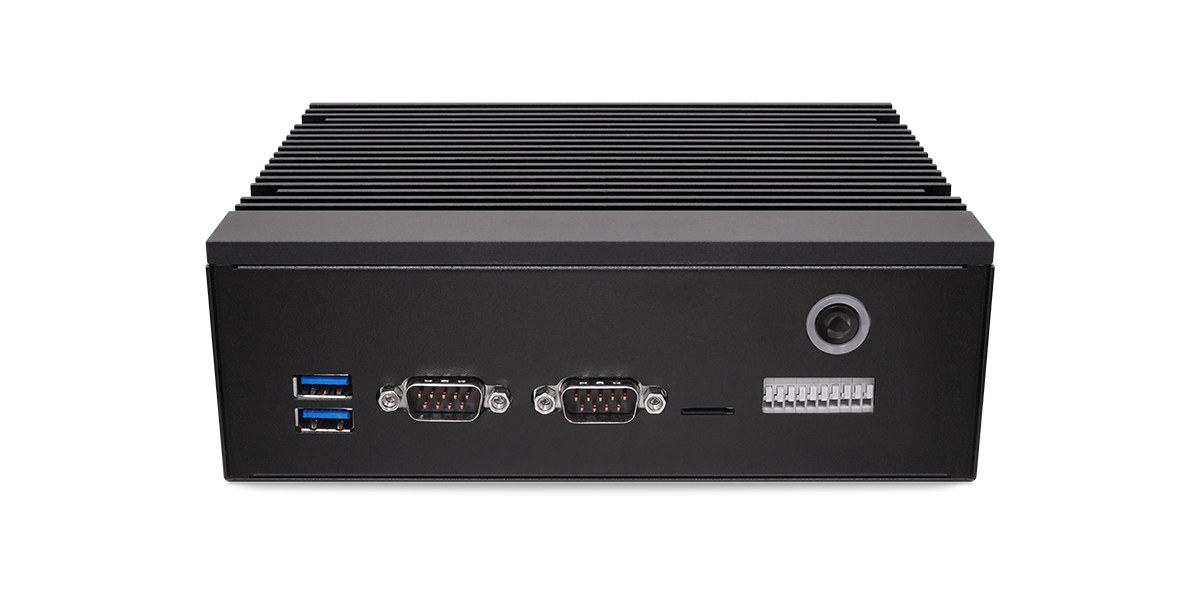

DEV2725
NVDIA Jetson AGX Orin | Up to 275 TOPS | Edge AI IPC
Description
CPU
NVIDIA Jetson AGX Orin 32GB/64GB
Memory
32GB, 256bit LPDDR5 /
64GB, 256bit LPDDR5
64GB, 256bit LPDDR5
Expansion
64GB eMMC 5.1
M.2 slot x1, 2280 (key M for NVMe SSD)
M.2 slot x1, 2230 (key E for Wifi/BT)
M.2 slot x1, 3042 (key B for LTE/4G/5G)
M.2 slot x1, 2280 (key M for NVMe SSD)
M.2 slot x1, 2230 (key E for Wifi/BT)
M.2 slot x1, 3042 (key B for LTE/4G/5G)
LAN
10 GLAN x1, GLAN x1
Storage
eMMC x1
M.2 SSD x1
M.2 SSD x1
Rear Panel I/O
DC Input x1 (12~20V)
HDMI Port x1
USB 3.2 x2 (Type A connectors)
USB 2.0 x4
COM RS232(CAN1) x1, RS485(CAN0) x1
PCle x8 slot x1
Antenna Holes x2
Power Button x1
Others:
8bit Isolate DIO (4 In/4 out) x1,
SIM slot x1, MicroSD Card x1,
Extension IO (I2C, I2S, PWM
UART(TX/RX), OOB x1, 120pin MIPI
x1, Audio combo x1
HDMI Port x1
USB 3.2 x2 (Type A connectors)
USB 2.0 x4
COM RS232(CAN1) x1, RS485(CAN0) x1
PCle x8 slot x1
Antenna Holes x2
Power Button x1
Others:
8bit Isolate DIO (4 In/4 out) x1,
SIM slot x1, MicroSD Card x1,
Extension IO (I2C, I2S, PWM
UART(TX/RX), OOB x1, 120pin MIPI
x1, Audio combo x1
Dimensions (W x H x D)
180 x 60 x 135 mm
7.09 x 2.36 x 5.31 inch
7.09 x 2.36 x 5.31 inch
Weight
Net Weight: 1.6 kgs / 3.5 lbs
Gross Weight: 2.4 kgs / 5.3 Lbs
Gross Weight: 2.4 kgs / 5.3 Lbs
WatchDog Timer
1 ~ 255 sec/min
Adapter
90W(19V, 4.74A) AC Adapter
Input Voltage
DC 12 ~ 20V
Operating Temperature
-20 ~ 50°C (-4 ~ 122°F)
Storage Temperature
-30 ~ 60°C (-22 ~ 140°F)
Relative Humidity
90% RH (45°C non-Condensing)
Support
Linux
NVIDIA JetPack 6.0 /6.2 or above
NVIDIA JetPack 6.0 /6.2 or above
TPM
TPM2.0
