DEX5750-S
11th Generation Intel® Core™ (i3, i5) 4K media player
Description
CPU
Socket：CPU on board
Type：11th Generation Intel® Core™ (i3, i5)
Type：11th Generation Intel® Core™ (i3, i5)
BIOS
-
Chipset
-
AiCU
N/A
Memory
Channel ：Dual Channel
Type：DDR4 SO-DIMM x 2
Data rate：3200
Max Memory：64G (based on OS support)
Type：DDR4 SO-DIMM x 2
Data rate：3200
Max Memory：64G (based on OS support)
Graphics
Intel Iris Xe Graphics
Expansion
M.2 slot x1, 2242(key B for 4G/SATA SSD)
M.2 slot x1, 2280(key M for PCIe SSD)
M.2 slot x1, 2230(key E for wifi)
M.2 slot x1, 2280(key M for PCIe SSD)
M.2 slot x1, 2230(key E for wifi)
Audio
Type：Realtek HD Audio ALC897
Channel ：Stereo
Channel ：Stereo
LAN
Intel GIGA LAN x 1 (i219LM)
100/1000/2500 Mbps
100/1000/2500 Mbps
Storage
M.2 SSD x 2

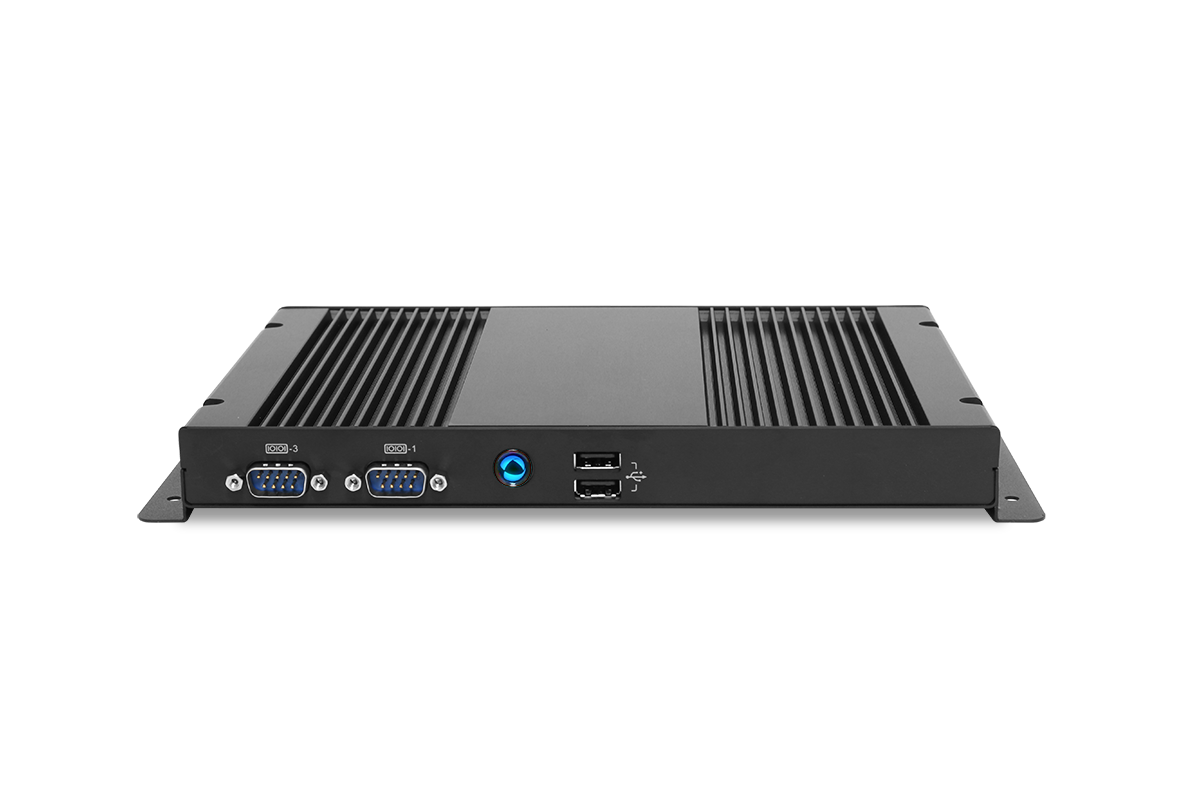

Front Panel I/O
USB 2.0 Port x 2
Others：Power Button x 1, RS232 x 2
Others：Power Button x 1, RS232 x 2
Rear Panel I/O
DC Jack x 1 (12 ~ 24V)
HDMI2.0 x 2
USB3.1 x 4
RJ45 LAN x 1 ( Giga LAN i219)
Audio set: Line-out x 1, Mic-in x 1
Antenna Holes x 2
HDMI2.0 x 2
USB3.1 x 4
RJ45 LAN x 1 ( Giga LAN i219)
Audio set: Line-out x 1, Mic-in x 1
Antenna Holes x 2
CPU Thermal Module
AOpen Thermal Module
Dimensions (W x H x D)
240 x 25 x 158 mm
9.44 x 0.98 x 6.22 inch
9.44 x 0.98 x 6.22 inch
Volume
0.95L
Weight
1.87 kgs / 4.12 lbs
WatchDog Timer
1 ~ 255 SEC./ min
Adapter
90W (19V, 4.74A) AC Adapter
ADP-90MD HDF
P/N: 90.DE757.0210
ADP-90MD HDF
P/N: 90.DE757.0210
Input Voltage
AC 100 ~ 240V
Warranty
1 Year
MTBF
50,000hrs
Operating Temperature
-20 ~45ºC (-4 ~ 113ºF)
Storage Temperature
-30 ~ 60ºC (-22 ~ 140ºF)
Relative Humidity
90% RH (non-Condensing)
Support
Windows, Linux
