DEX5750-W
8K | 4-screen Intel-based system that can endure harsh temperatures
Description
CPU
Socket: CPU on board
Type: Intel 7th Gen Kaby Lake U ≦ 15W
Type: Intel 7th Gen Kaby Lake U ≦ 15W
Chipset
-
AiCU
Yes
Memory
Channel: Dual Channel
Type: DDR4 SO-DIMM x 2
Data rate: 3200
Max Memory: 64G
Type: DDR4 SO-DIMM x 2
Data rate: 3200
Max Memory: 64G
Graphics
Intel Iris Xe Graphics
Expansion
M.2 slot x1, 2242(key B for 4G/SATA SSD)
M.2 slot x1, 2280(key M for PCIe SSD)
M.2 slot x1, 2230(key E for wifi)
M.2 slot x1, 2280(key M for PCIe SSD)
M.2 slot x1, 2230(key E for wifi)
Audio
Type: Realtek HD Audio ALC269Q
Channel: Stereo
Channel: Stereo
LAN
Intel 2.5GLAN x 1 (i225LM)
Intel GIGA LAN x 1 (i219LM)
100/1000/2500 Mbps
Intel GIGA LAN x 1 (i219LM)
100/1000/2500 Mbps
Storage
M.2 SSD x 2

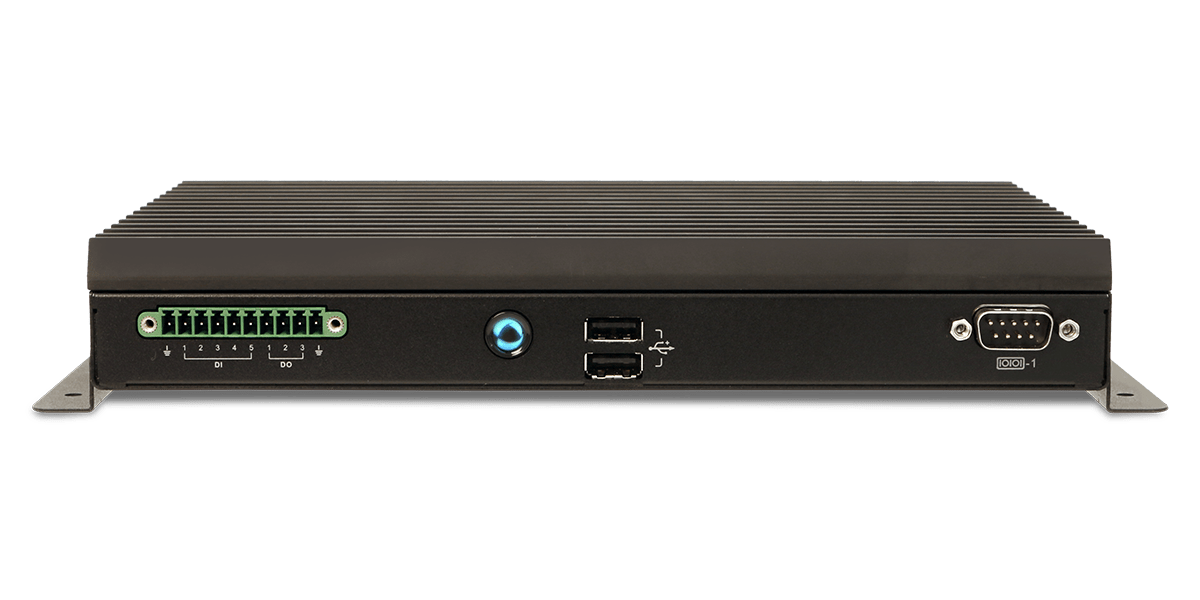

Front Panel I/O
USB 2.0 Port x 2
Others:
Power Button x 1,
8bit GPIO x 1,
RS232/422/485 x 1
Others:
Power Button x 1,
8bit GPIO x 1,
RS232/422/485 x 1
Rear Panel I/O
DC Jack: 12/24V, 5517 x 1
HDMI 2.0 Port x 2
USB 3.1 Port x 4
RJ45 LAN Jack x 2
DisplayPort x 2
Audio Set: Line-Out x 1, Mic-In x 1
Antenna Holes x 2
Others: Extend power SW x 1
HDMI 2.0 Port x 2
USB 3.1 Port x 4
RJ45 LAN Jack x 2
DisplayPort x 2
Audio Set: Line-Out x 1, Mic-In x 1
Antenna Holes x 2
Others: Extend power SW x 1
CPU Thermal Module
AOpen Thermal Module
Dimensions (W x H x D)
240(W) x 35(H) x 158(L) mm
9.44(W) x 1.38(H) x 6.22(L) inch
9.44(W) x 1.38(H) x 6.22(L) inch
Volume
1.33L
Weight
1.69kg
w/accessory (Box package): 2.46kg
w/accessory (Box package): 2.46kg
WatchDog Timer
1 ~ 255 SEC./ min
Adapter
90W (19V, 4.74A) AC Adapter
GST90A-HDW
PN:90.IPC57.0110
GST90A-HDW
PN:90.IPC57.0110
Input Voltage
AC 100 ~ 240V
Warranty
2 Years
MTBF
50,000hrs
Operating Temperature
-20 ~60ºC (-4 ~ 140ºF)
Storage Temperature
-30 ~ 70°C (-22 ~ 158°F)
Relative Humidity
90% RH (60ºC non-Condensing)
Support
Windows
Linux
AiCU
Linux
AiCU
