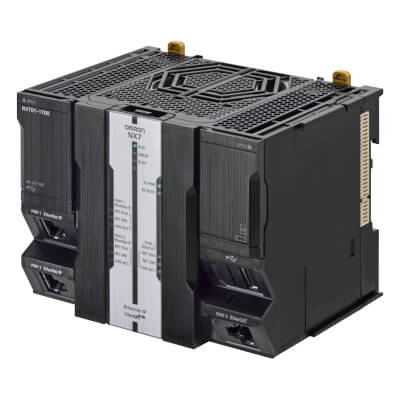

NX701-1620
Processeur Sysmac NX7 CPU avec connexion à des bases de données, 80 Mo de mémoire, EtherCAT intégré (128 axes asservis, au total 512 nœuds EtherCAT) et 2 ports EtherNet/IP
Description
| Controller functionality | DB connection, Motion control, OPC-UA, Sequence control |
| Primary task cycle time | 0.125 ms |
| Program memory | 80 MB |
| Variables memory | 260 MB |
| Max. number of synchronous axes | 128 |
| Max. number of axes (incl. virtual) | 128 |
| Communication port(s) | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
| Communication option(s) | None |
| Max. number of remote I/O nodes | 512 |
| I/O system | NX I/O Bus |
| Max. number of expansion units | 0 |
| Product Height (unpacked) | 100 mm |
| Product Width (unpacked) | 132 mm |
| Product Depth (unpacked) | 100 mm |
| Product Weight (unpacked) | 880 g |
